Gravitational waves from early universe phase transitions

David J. Weir [they/he]
University of Helsinki

This talk: saoghal.net/slides/nordita2023

1st Nordic Cosmology Meeting, October 2023

While you were waiting

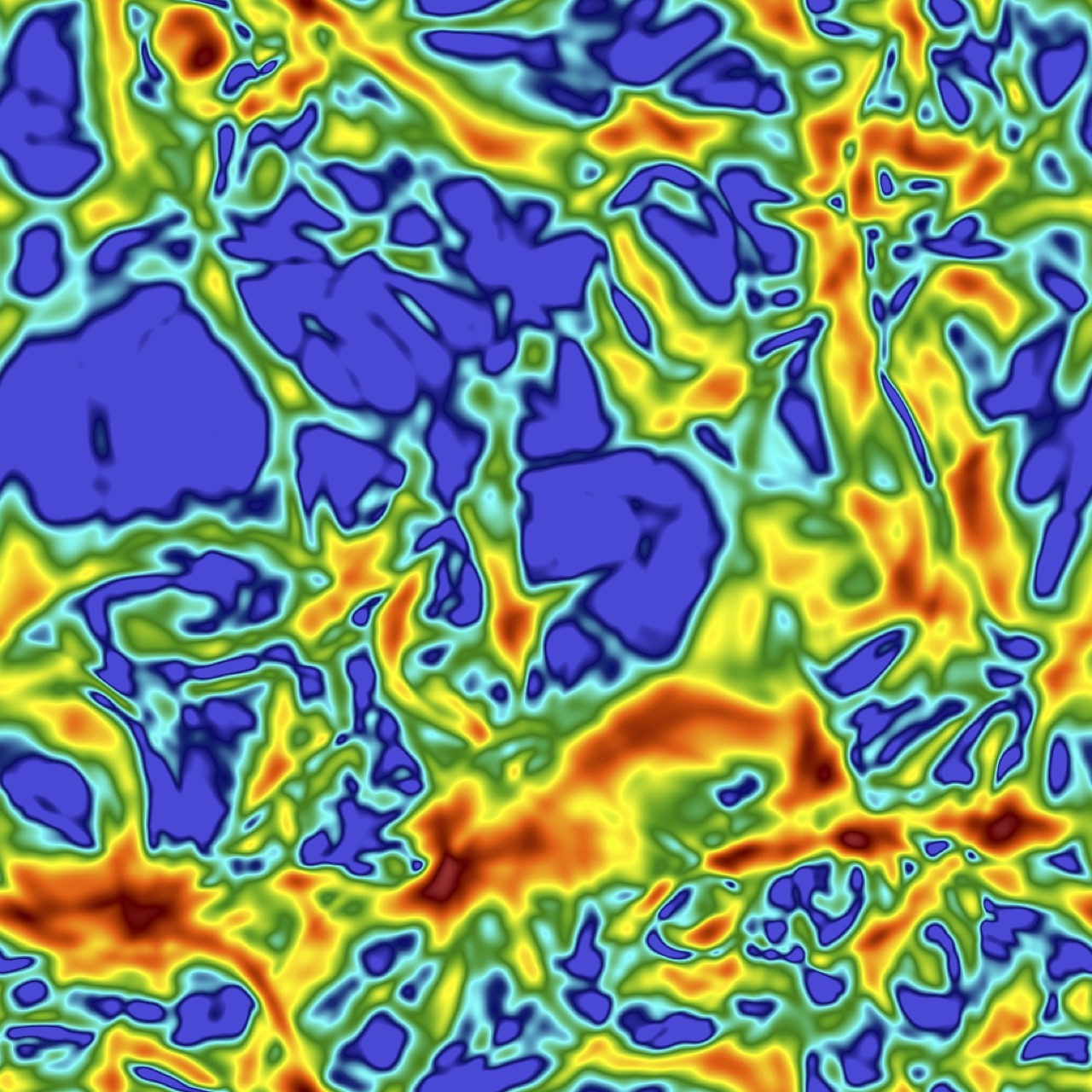

You were watching a movie the magnitude of the fluid 3-velocity in a simulation of freely decaying turbulence

arXiv:2112.12013

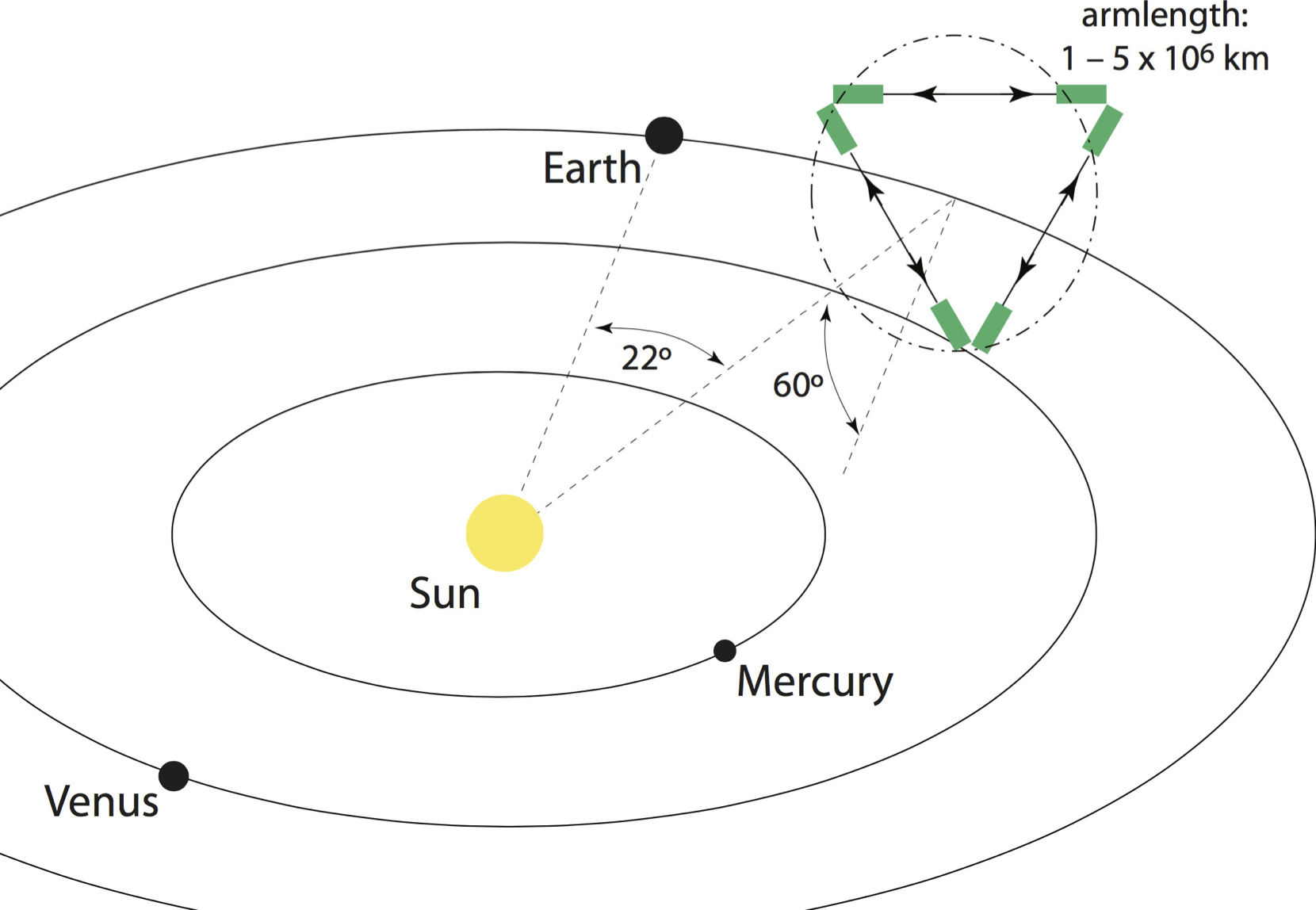

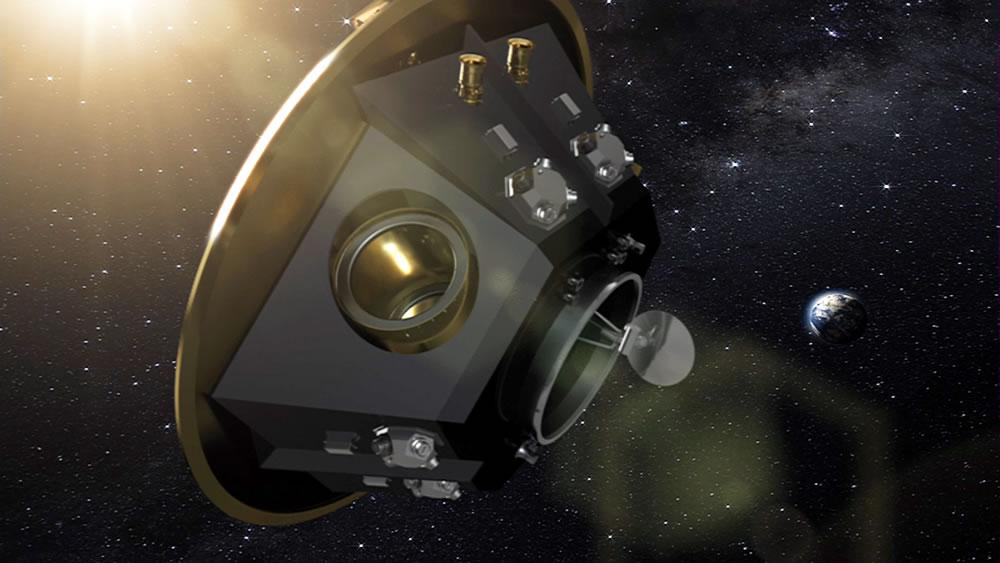

LISA is coming!

• Three laser arms, 2.5 M km separation
• ESA-NASA mission, launch 2030s
• Mission exited 'phase A' in December 2021
• Adoption by ESA later this year

arXiv:1702.00786

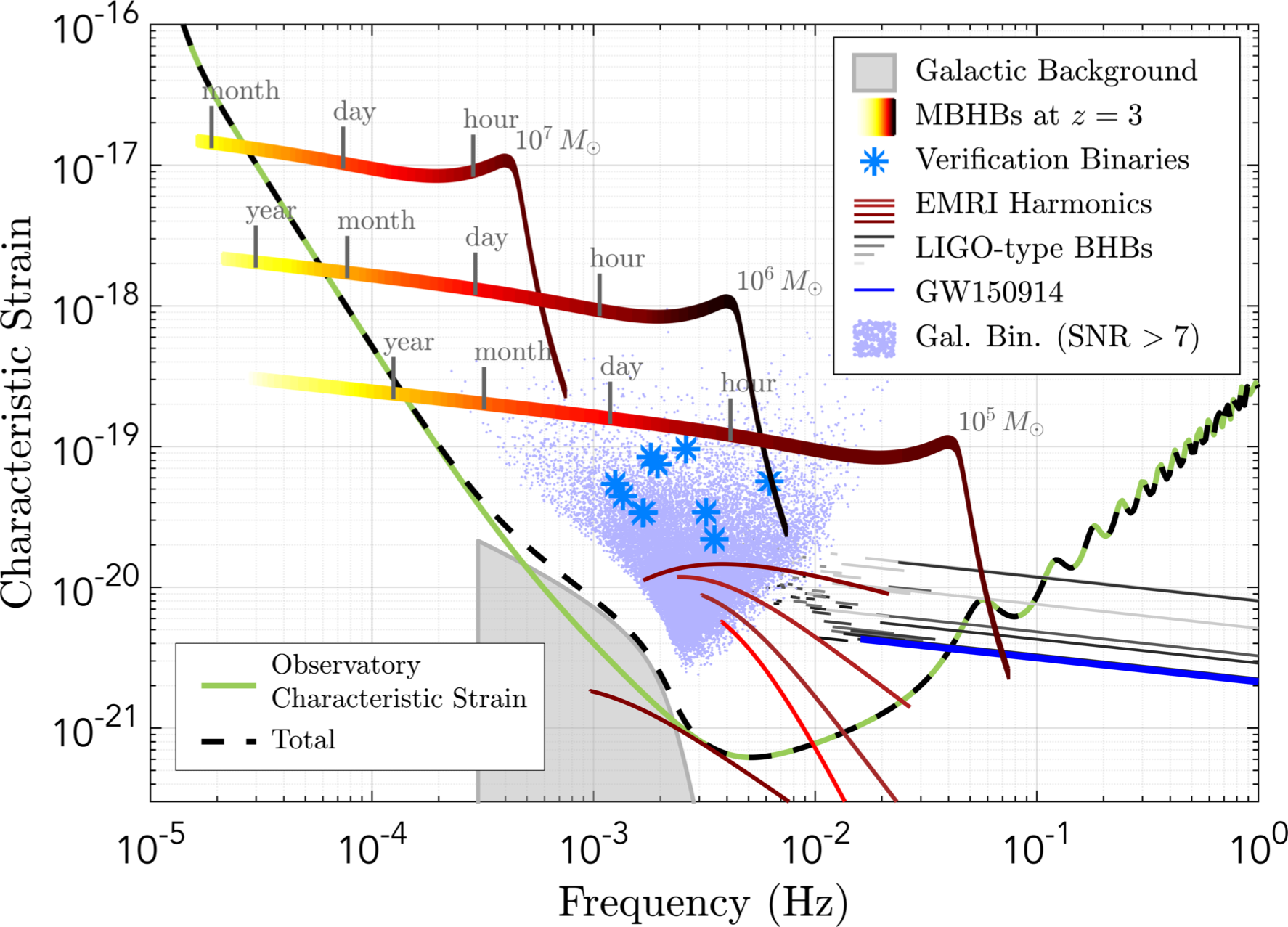

LISA: "Astrophysics" signals

LISA: Stochastic background?

[qualitative curve, sketched on]

Scales and frequencies

By considering how GWs get redshifted on the way to us, and assuming they get produced at cosmological scales:

[order-of-magnitude calculation!]
arXiv:2008.09136

Could BSM physics produce a stochastic background?

First-order phase transitions are a complementary probe of new physics that might be

• Out of sight of particle physics experiments, or
• At higher energy scales than colliders can reach

[what BSM physics might there be?]
Particle physics model
$\Downarrow \mathcal{L}_{4\mathrm{d}}$
Dimensional reduction
$\Downarrow \mathcal{L}_{3\mathrm{d}}$
Phase transition parameters
from lattice simulations
$\Downarrow \alpha, \beta, T_N, v_\mathrm{w}, \ldots$
Real time cosmological simulations
$\Downarrow \Omega_\text{gw}(f)$
Cosmological GW background
[what would we see as a result?]

Particle physics model
$\Downarrow \mathcal{L}_{4\mathrm{d}}$
Dimensional reduction
$\Downarrow \mathcal{L}_{3\mathrm{d}}$
Phase transition parameters
from lattice simulations
$\Downarrow \alpha, \beta, T_N, v_\mathrm{w}, \ldots$
Real time cosmological simulations
$\Downarrow \Omega_\text{gw}(f)$
Cosmological GW background

Particle physics model
$\Downarrow \mathcal{L}_{4\mathrm{d}}$
Dimensional reduction
$\Downarrow \mathcal{L}_{3\mathrm{d}}$
Phase transition parameters
from lattice simulations
$\Downarrow \alpha, \beta, T_N, v_\mathrm{w}, \ldots$
Real time cosmological simulations
$\Downarrow \Omega_\text{gw}(f)$
Cosmological GW background

My focus: extensions of the Standard Model

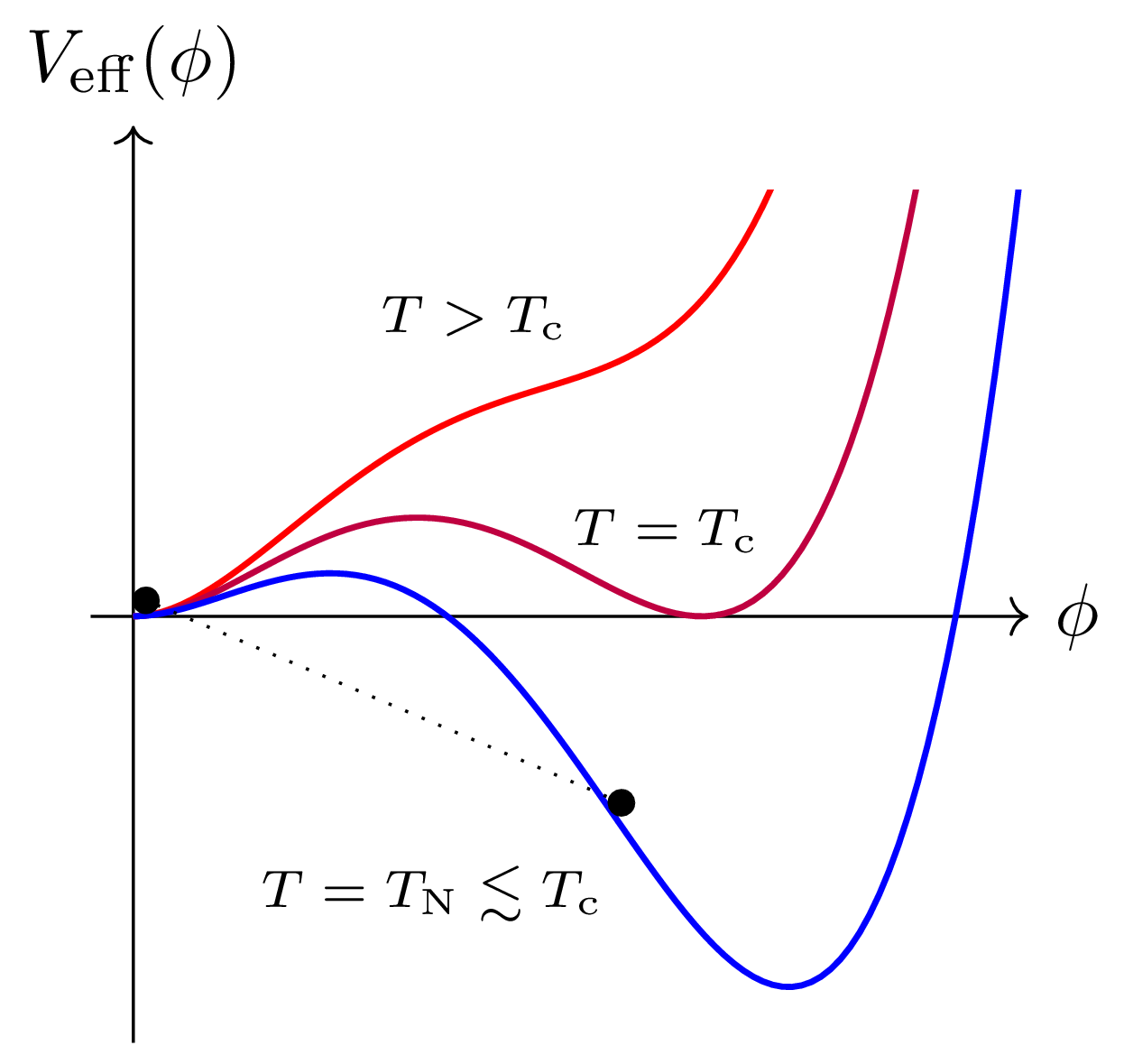

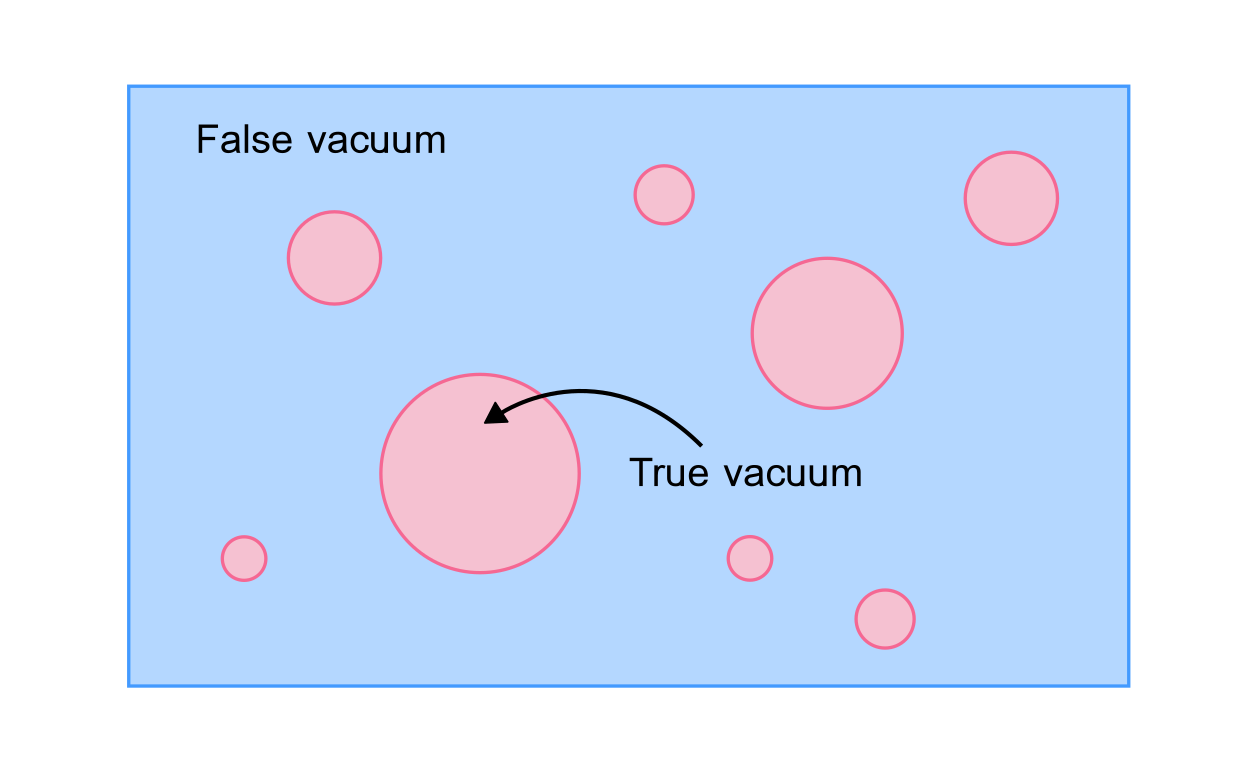

SM electroweak phase transition

• Process by which the Higgs 'switched on'
• In the Standard Model it is a crossover
• Possible in extensions that it would be first order
  ➥ colliding bubbles then make gravitational waves

Image credit: A. Kormu

Using dimensional reduction

• At high $T$, system looks 3D at distances $\Delta x \gg 1/T$

• Match Green's functions at each step to desired order
• Handles the infrared problem, light fields can be studied on lattice arXiv:hep-ph/9508379

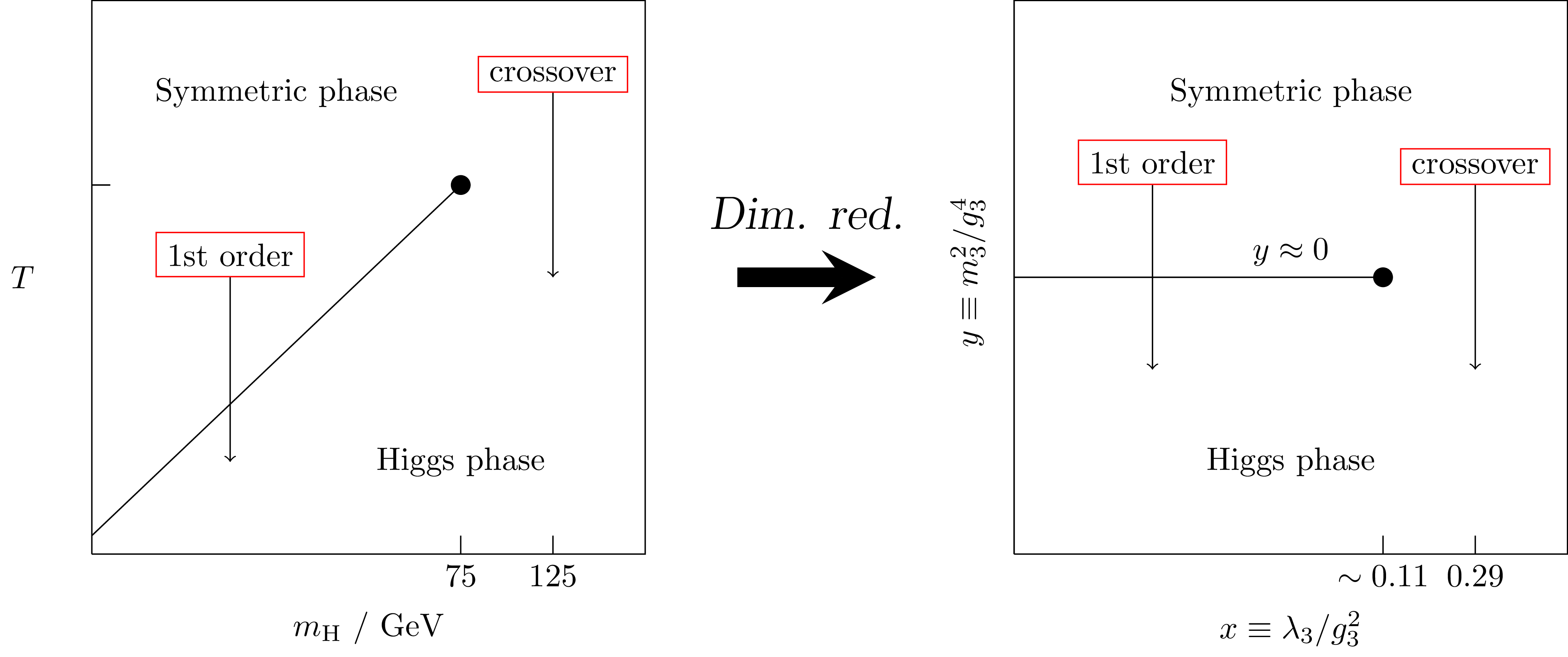

The electroweak phase transition

• Simulate DR'ed 3D theory on lattice arXiv:hep-let/9510020
• With DR, can integrate out heavy new physics and study simpler model

When new physics is heavy

• Comparison at benchmark point in minimal SM
• Compare: ● 4d PT vs ● 3d PT vs ● NP (= lattice)

How to get strong transitions?

• Theories that look SM-like in the IR ⇒ not observable!
• But what happens with additional light fields?

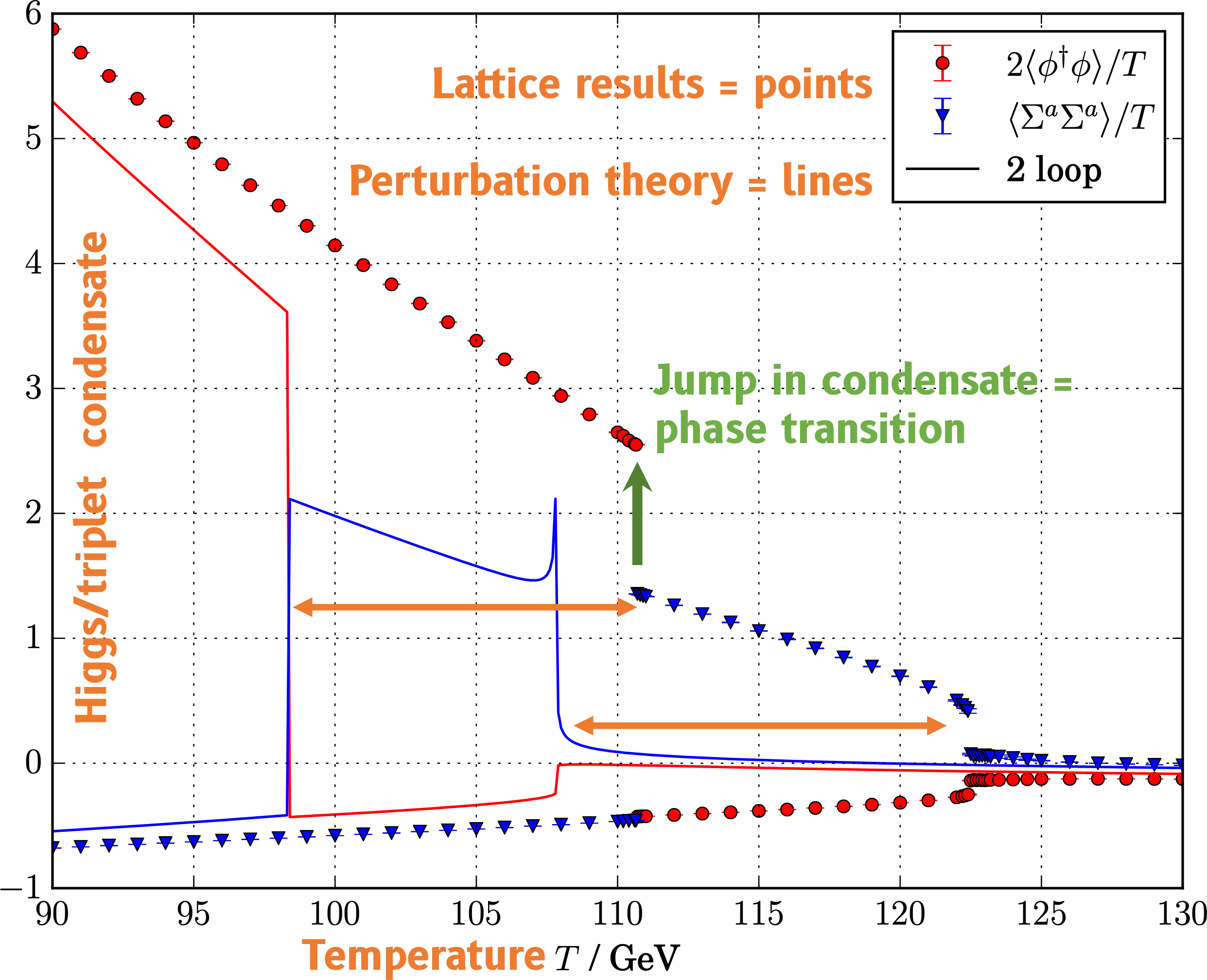

Lattice Monte Carlo benchmarks

Need for accuracy: $\Sigma$SM (triplet) example arXiv:2005.11332

Perturbation theory out by 10% or more!
Talks by Anna Kormu, Tuomas Tenkanen

Particle physics model ✅
$\Downarrow \mathcal{L}_{4\mathrm{d}}$
Dimensional reduction ✅
$\Downarrow \mathcal{L}_{3\mathrm{d}}$
Phase transition parameters from lattice simulations ✅
$\Downarrow \alpha, \beta, T_N, v_\mathrm{w}, \ldots$
Real time cosmological simulations
$\Downarrow \Omega_\text{gw}(f)$
Cosmological GW background

[what BSM physics might there be?]
Particle physics model ✅
$\Downarrow \mathcal{L}_{4\mathrm{d}}$
Dimensional reduction ✅
$\Downarrow \mathcal{L}_{3\mathrm{d}}$
Phase transition parameters from lattice simulations ✅
$\Downarrow \alpha, \beta, T_N, v_\mathrm{w}, \ldots$
Real time cosmological simulations
$\Downarrow \Omega_\text{gw}(f)$
Cosmological GW background
[what would we see as a result?]

Dynamics of phase transitions (probably) rely on relatively few parameters

Including:

• $\alpha$, the phase transition strength
• $\beta$, the inverse phase transition duration
• $v_\mathrm{w}$, the speed at which bubbles expand

...and $T_N$, the nucleation temperature

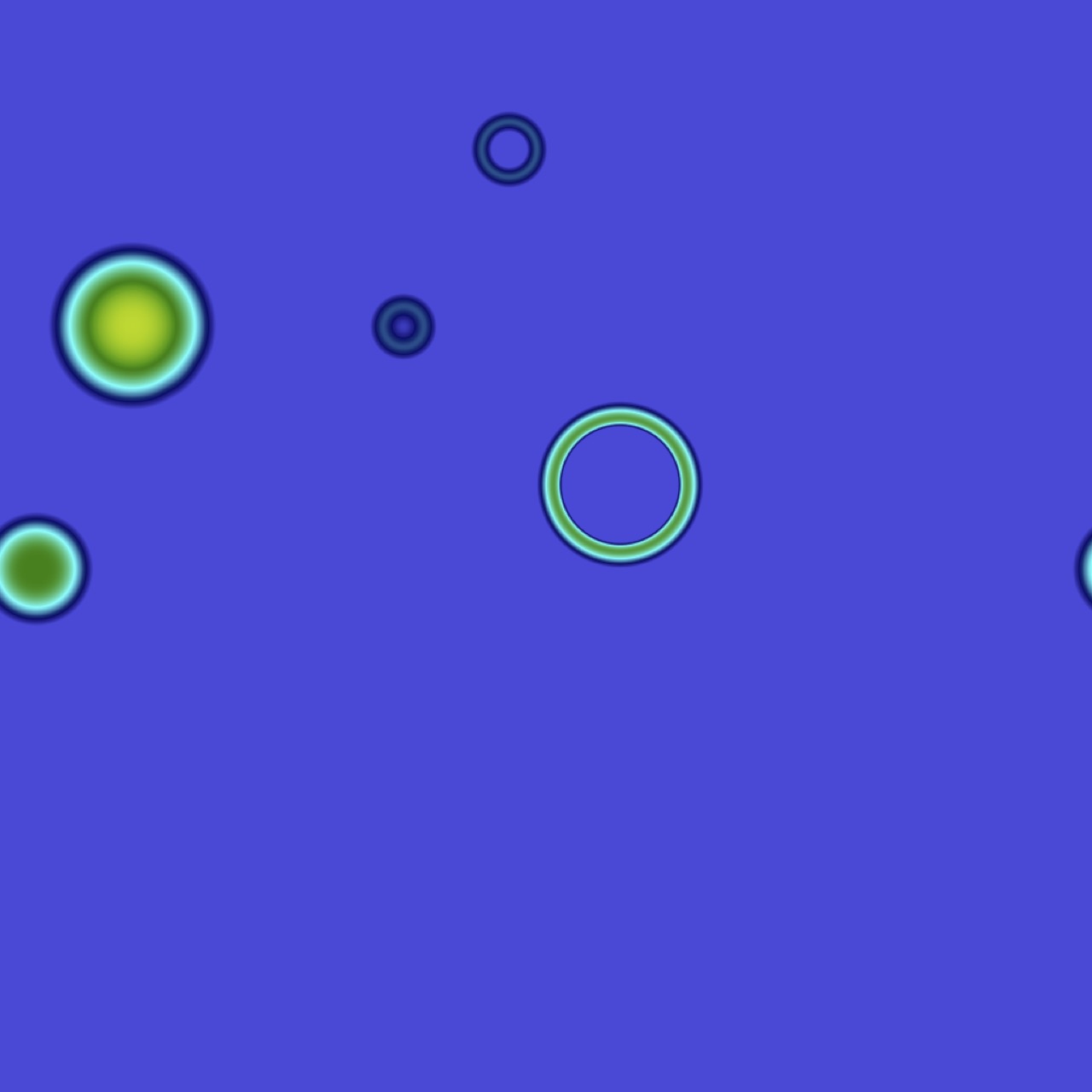

Phase transition = out of equilibrium

1. Bubbles nucleate (temperature $T_\mathrm{N}$, on timescale $\beta^{-1}$)
2. Bubble walls expand in a plasma (at velocity $v_\mathrm{w}$)
3. Reaction fronts form around walls (with strength $\alpha$)

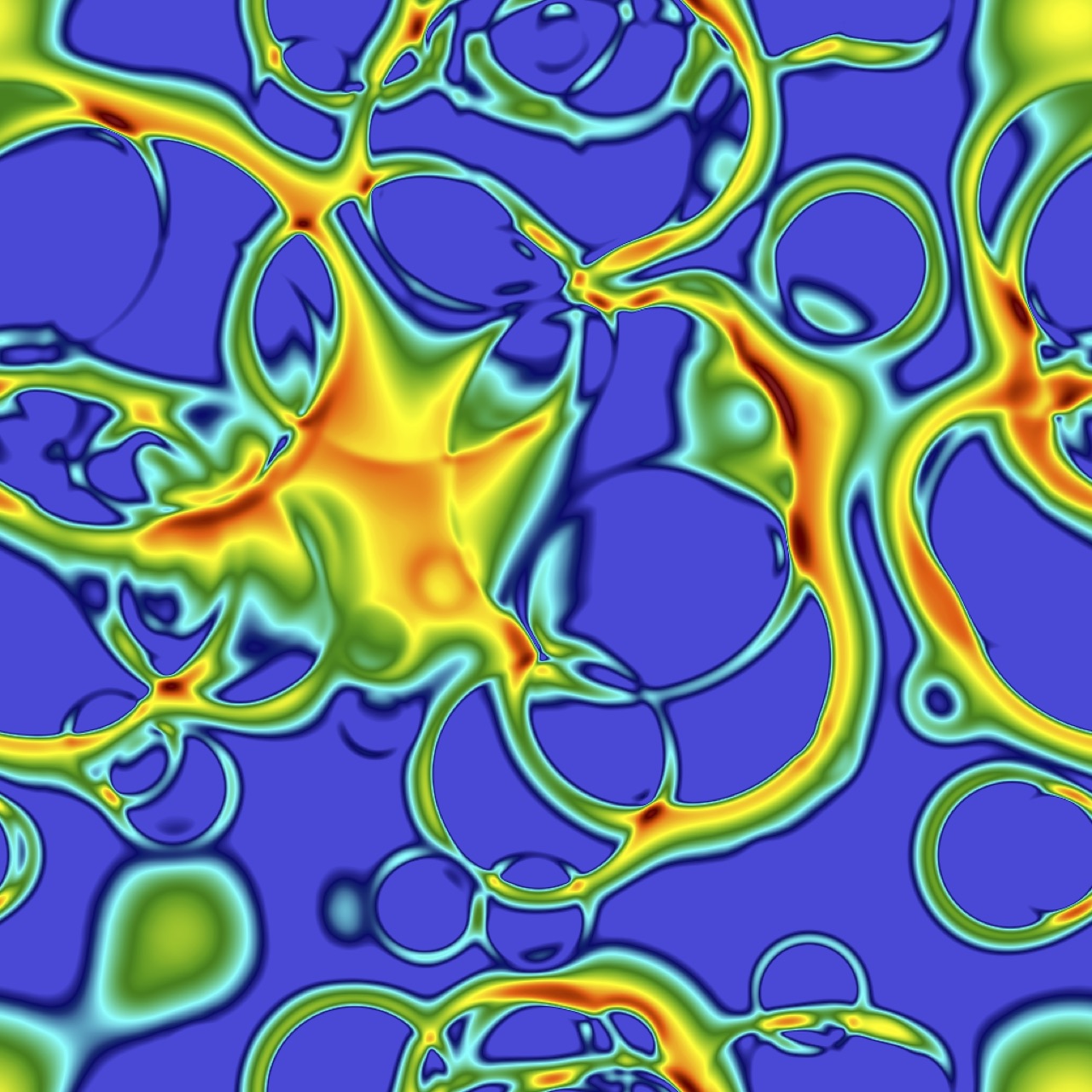

4. Bubbles + fronts collide GWs
5. Sound waves left behind in plasma GWs
6. Shocks [$\rightarrow$ turbulence] $\rightarrow$ damping GWs

How are GWs produced at a first order phase transition?

• Not all phase transitions have $v_\mathrm{w} < c$ ...
  • 'Vacuum' transitions with no couplings/friction
  • 'Run away' transitions arXiv:1703.08215
• ... but if they do:
  • Plasma motion lasts a Hubble time $1/H_*$
  • Fluid motion becomes nonlinear on a time scale
    $$\tau_\text{sh} = \frac{R_*}{\overline{U}} = \frac{\text{Bubble radius (i.e. length scale)}}{\text{Typical fluid velocity}}$$

What matters is the SNR

$\text{SNR} = \sqrt{\mathcal{T} \int_{f_\text{min}}^{f_\text{max}} \mathrm{d} f \left[ \frac{h^2 \Omega_\text{GW}(f)}{h^2 \Omega_\text{Sens}(f)}\right]^2} $

Deal with astrophysical foregrounds! Talk by Deanna C. Hooper

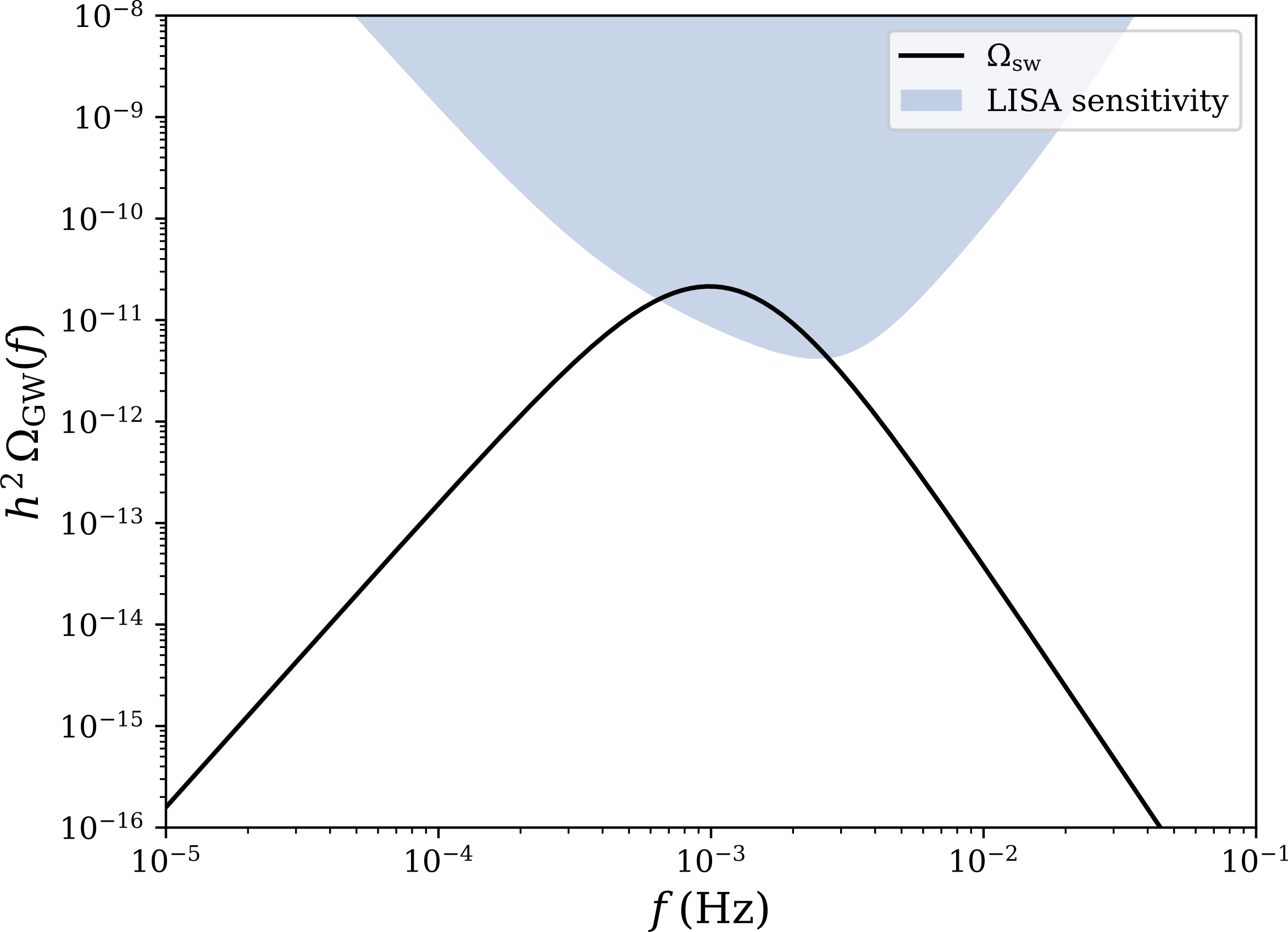

Explore $\Omega_\text{gw}(f)$ with PTPlot.org

Model ⟶ ($\alpha$, $\beta$, $T_N$, $v_\mathrm{w}$ ) ⟶ this plot

arXiv:1910.13125

Explore $\Omega_\text{gw}(f)$ with PTPlot.org

Assumes GW emission stops when nonlinearities form.

arXiv:1910.13125

Nonlinearities?

• Nonlinearities during the transition:
  • Generation of vorticity
  • Formation of droplets
• Nonlinearities after the transition:
  • Shocks
  • Turbulence (Kolmogorov and acoustic)

Let's look at droplets and Komogorov turbulence

(see talk by Jani Dahl for acoustic turbulence)

Strong deflagrations ⇒ droplets

[$\alpha_{T_*} = 0.34$, $v_\mathrm{w} = 0.24$ (deflag.)], velocity $\mathbf{v}$

A closer look in spherical geometry

arXiv:2204.03396

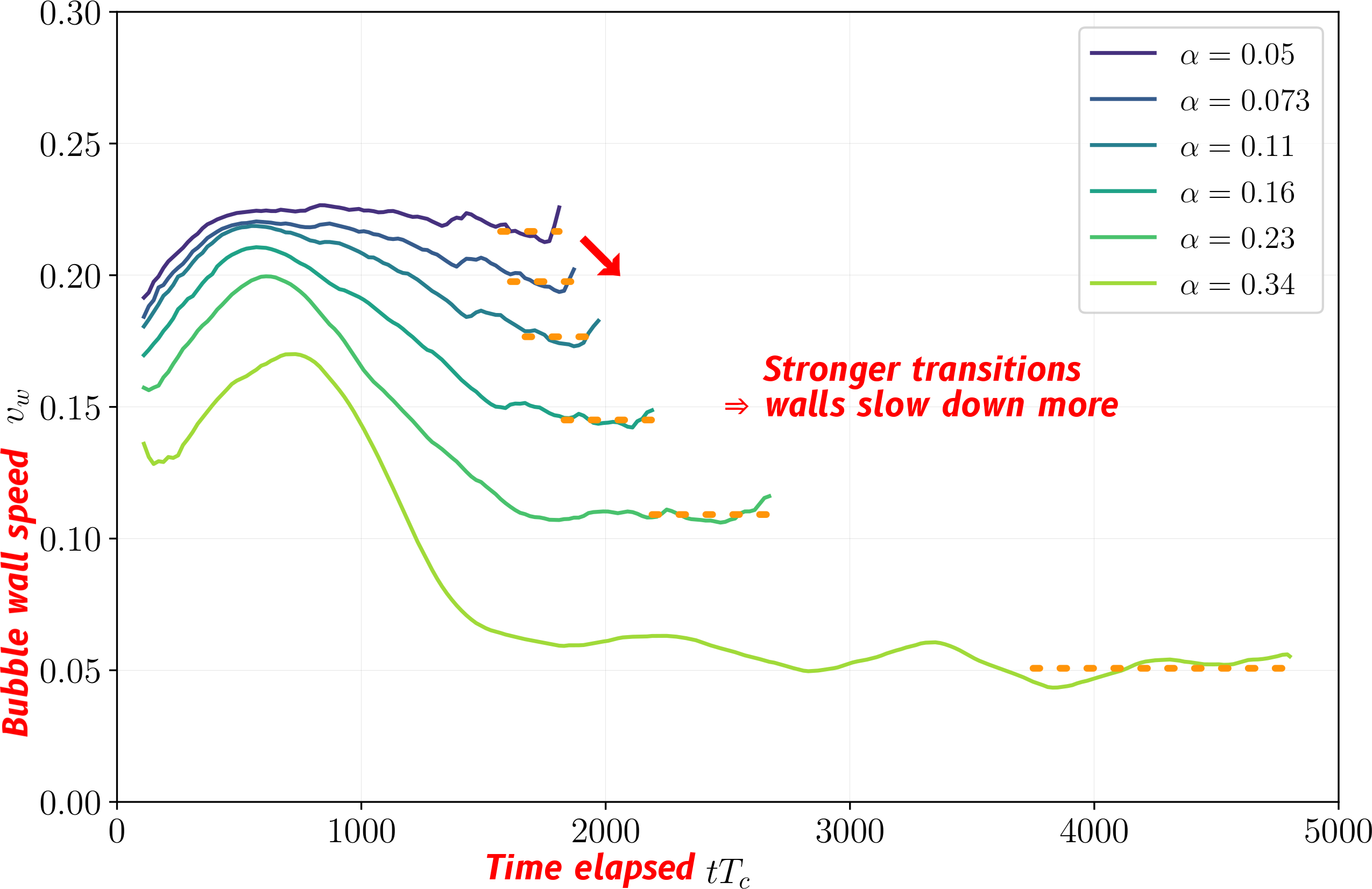

Droplets form ➤ walls slow down

At large $\alpha_{T_*}$ reheated droplets form in front of the walls

arXiv:2204.03396

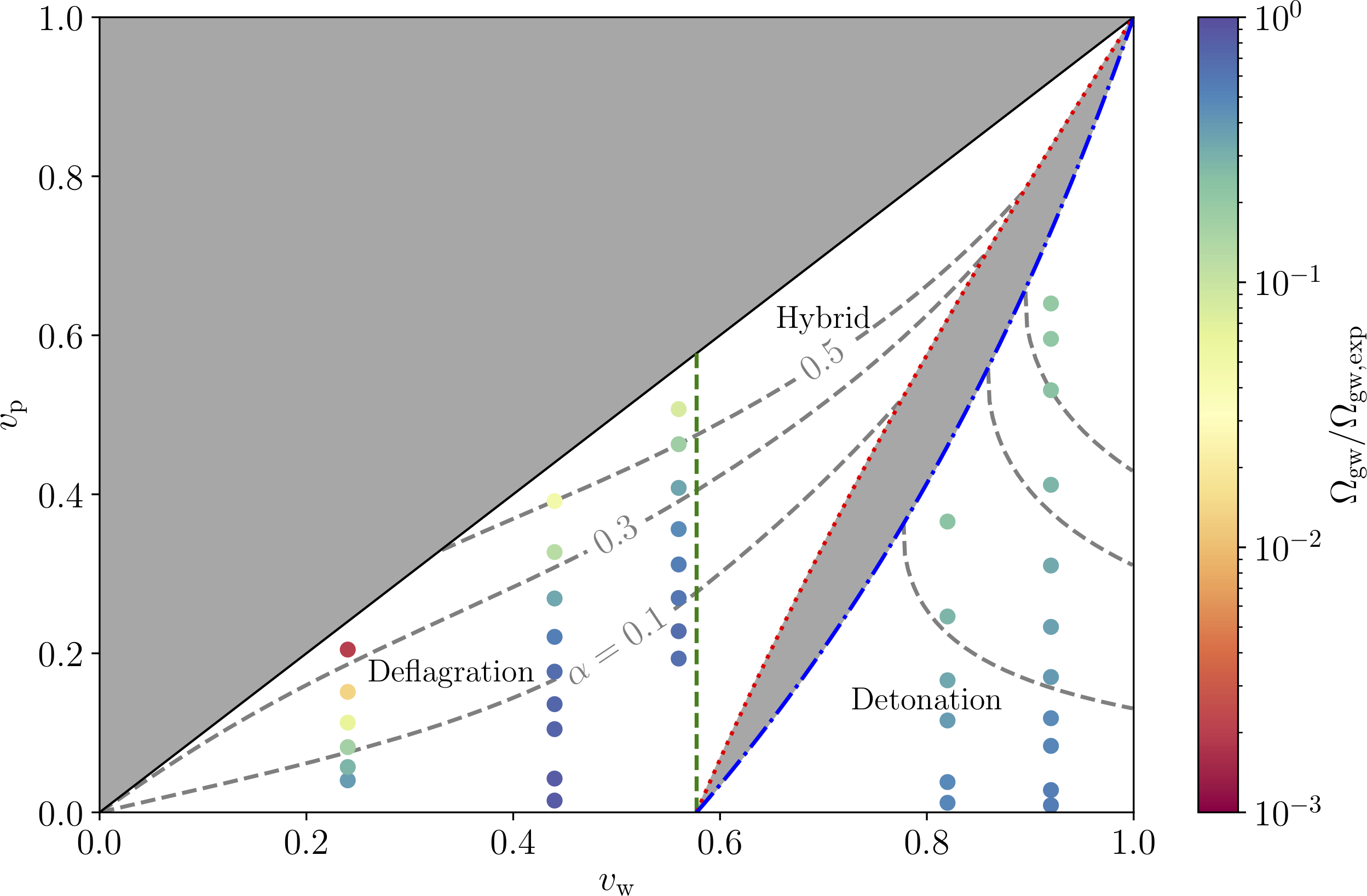

Droplets may suppress GWs

arXiv:1906.00480

Droplets and phenomenology

• Long-lived regions with moderate wall velocities
• Could this help with baryogenesis? For strong transitions, walls often move too quickly.
• Proposals for dark strongly interacting matter 'nuggets' where the phases coexist e.g. arXiv:1810.04360 arXiv:1912.02830
• Other applications?
• Further 3D simulations will be needed

Kolmogorov turbulence: freely decaying simulations

arXiv:2205.02588

Kolmogorov turbulence: GWs

Validated theoretical modelling of GWs from Kolmogorov turbulence with large-scale simulations

arXiv:2205.02588

Some talks to watch out for 🇫🇮

• What about expanding bubbles in full GR?
  ➤ Talk by Lorenzo Giombi
• Can lattice simulations help us compute the nucleation rate (and hence $\beta$) more accurately?
  ➤ Talk by Anna Kormu
• How do we reconstruct phase transition parameters from GW data?
  ➤ Talk by Deanna C. Hooper
• Do we really need lattice simulations after all?
  ➤ Talk by Tuomas Tenkanen
• How does the formation of acoustic turbulence affect the GW power spectrum?
  ➤ Talk by Jani Dahl
