### Cosmic necklaces 💎

David Weir (he/him/his) - davidjamesweir
University of Nottingham

This talk: saoghal.net/slides/jyvaskyla-necklaces

IDS Workshop, Jyväskylä, 5 June 2019

### With:

Mark Hindmarsh • Anna Kormu • Asier Lopez-Eiguren • Kari Rummukainen

### Cosmic strings: motivation

• Extended, long lived, very tense pieces of 'string' formed during symmetry breaking in early universe.
• They produce a scaling network:
• 📏 All lengths grow with the horizon size.
• ↔️ Fraction of energy in the network is constant.
• Lose energy by gravitational + particle radiation.
• Loops of string are long-lived
☛ emit GWs over many wavelengths as they shrink.

Next page: video credit David Daverio, John Favre

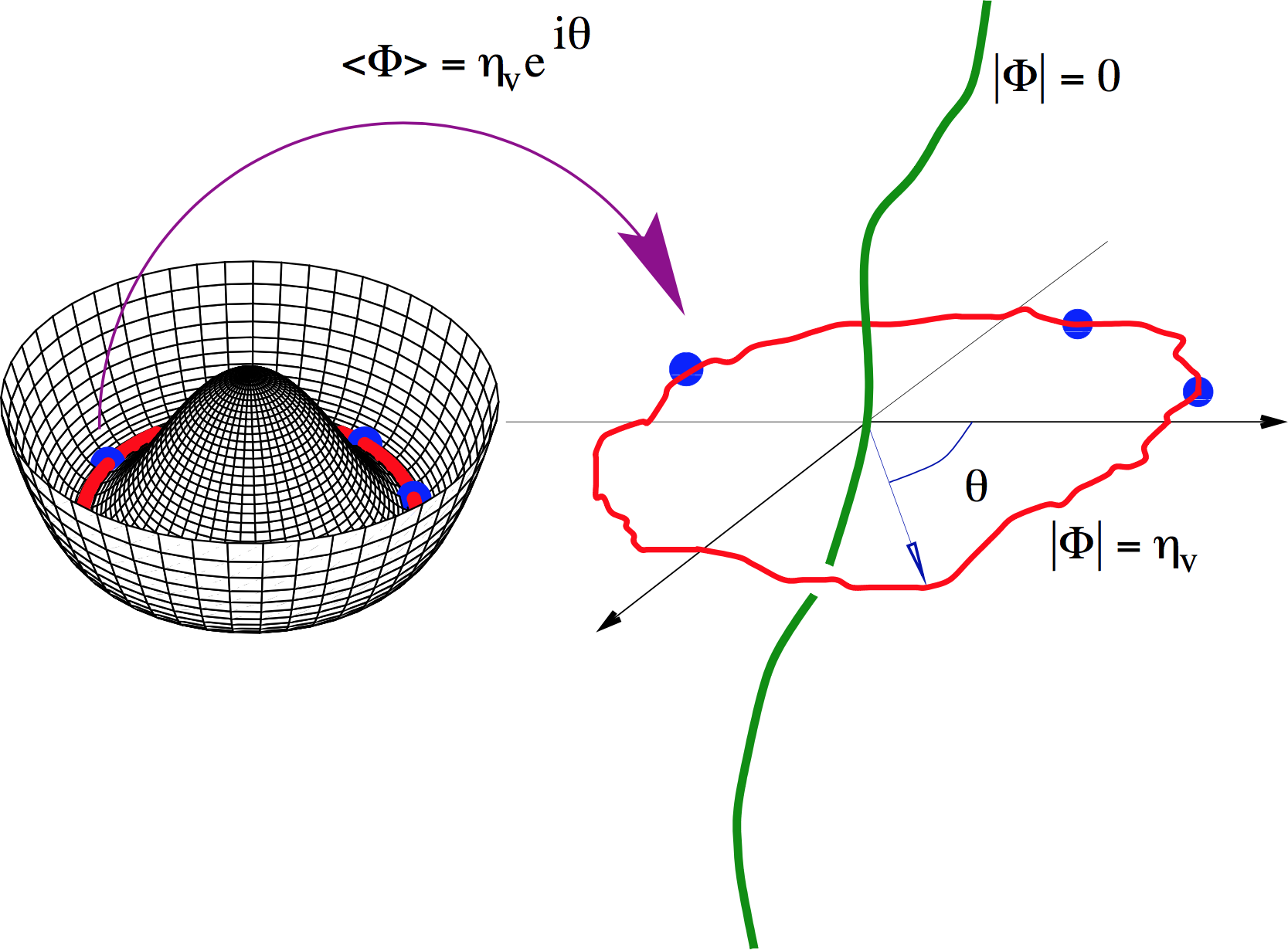

### Topological stability

In field theory, cosmic strings are topologically stable:

Picture source: arXiv:1005.4842

Can also be modelled by thin Nambu-Goto strings.

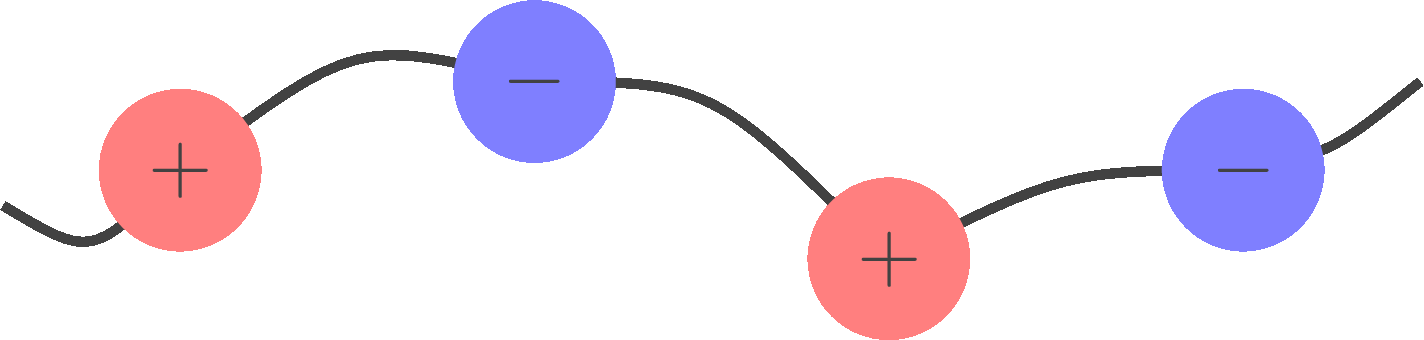

### What about cosmic necklaces?

• Necklaces are networks of strings carrying monopoles.
• Models can be embedded in GUTs, including $\mathrm{SO}(10)$.
• May not behave quite like strings; role of monopoles?
• Observations:
• 📡 Cosmic ray and $\gamma$-ray signals? astro-ph/9704257
• 〰️ Gravitational waves? (or lack thereof)

### The model

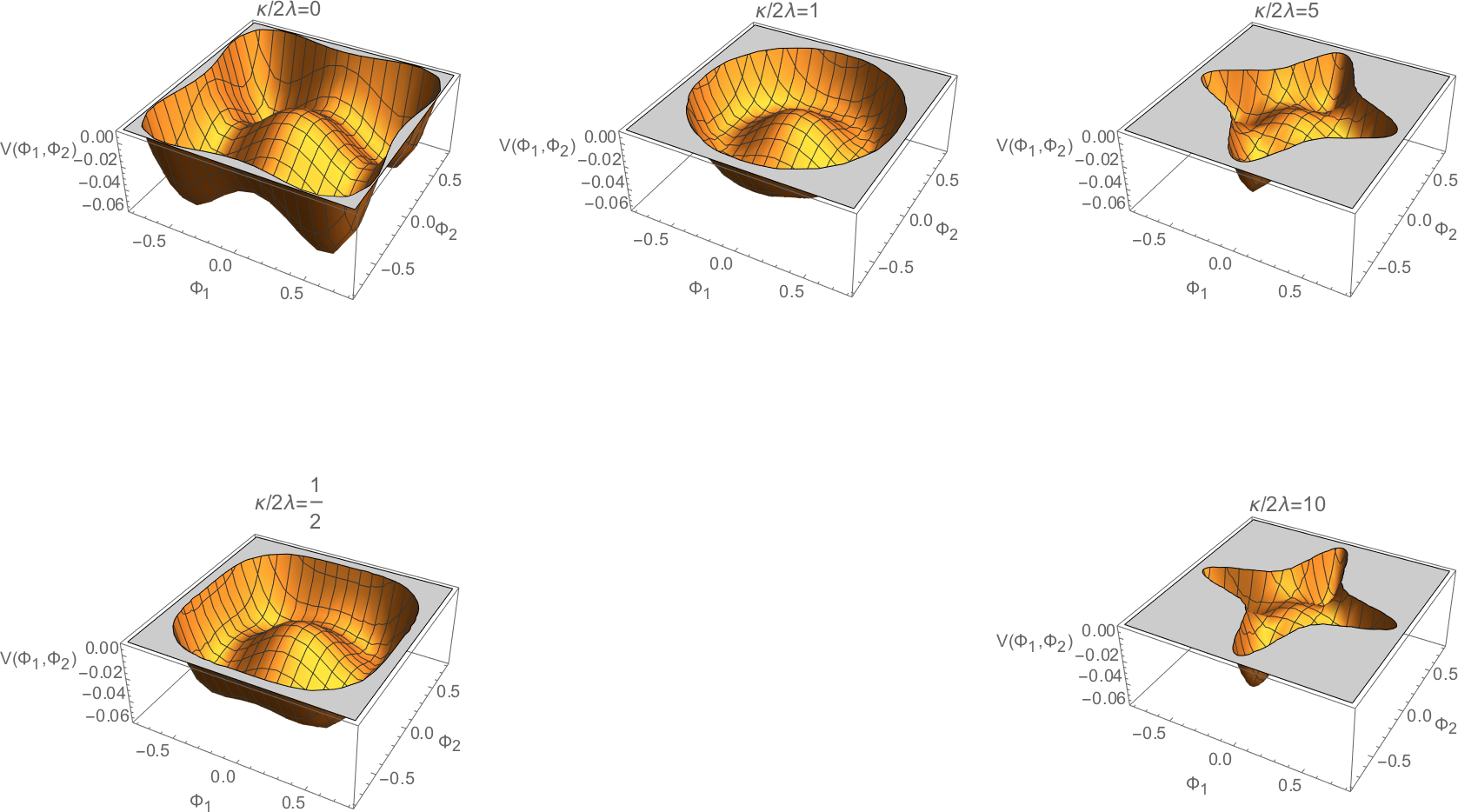

• "$\mathrm{SU}(2)$ Georgi-Glashow model, two adjoint Higgses" $$\begin{multline} V(\Phi_1,\Phi_2) = - m_1^2\mathrm{Tr}\Phi_1^2 - m_2^2\mathrm{Tr}\Phi_2^2 \\ +\lambda (\mathrm{Tr}\Phi_1^2)^2 + \lambda (\mathrm{Tr}\Phi_2^2)^2 +\kappa(\mathrm{Tr}\Phi_1\Phi_2)^2. \end{multline}$$
• If $m_1^2 > m_2^2$: necklaces with monopoles, charge $\{\pm 1\}$.
• If $m_1^2 = m_2^2$, behaviour depends on $\kappa/2\lambda$:
• If $\kappa = 2\lambda$, there's a global $\mathrm{U}(1)$ - superfluidity.
• If $\kappa \neq 2\lambda$, monopoles split into two semipoles with complex charge $\{1,i,-1,-i\}$.

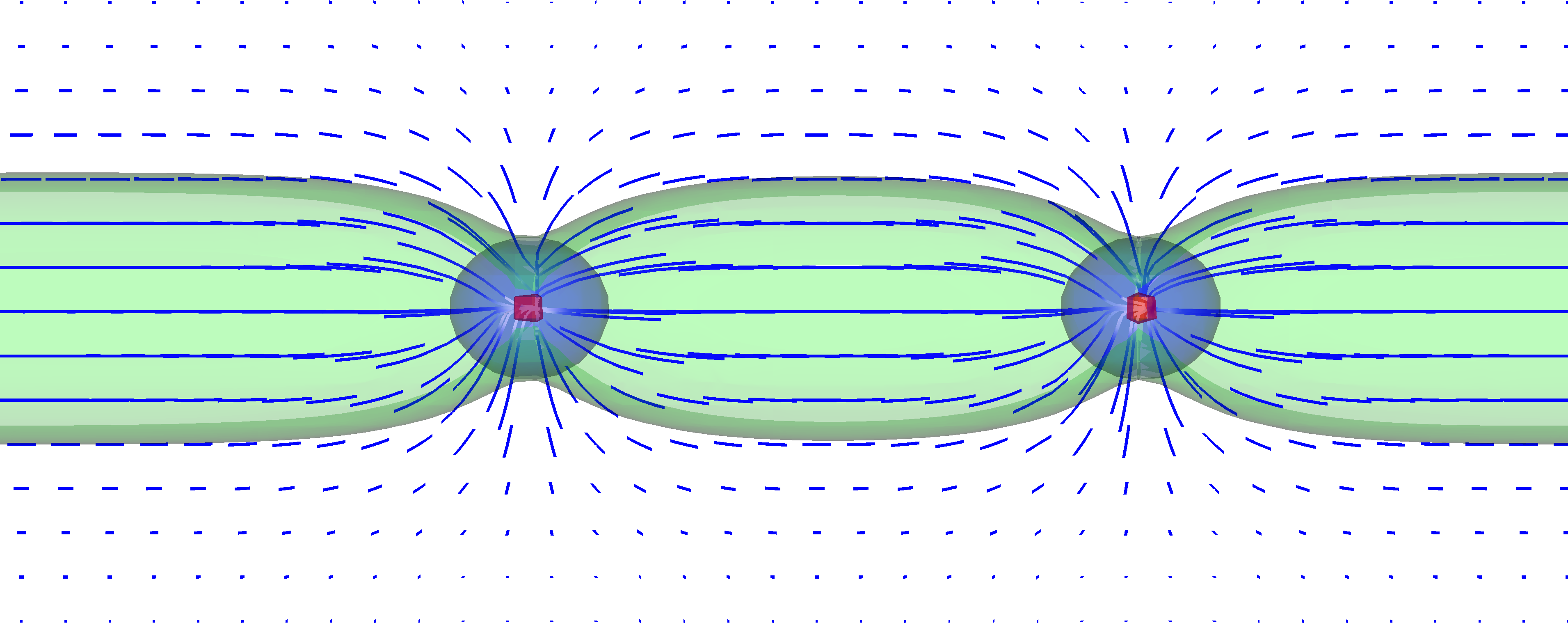

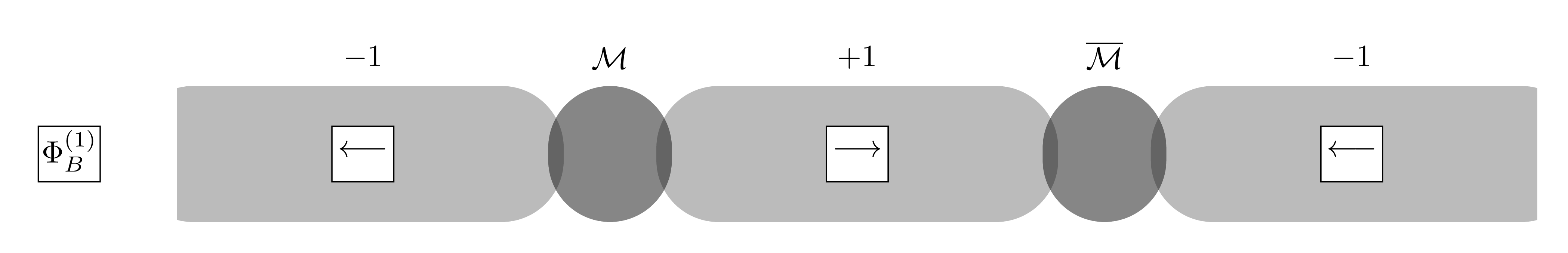

### Necklaces

• When $m_1^2 > m_2^2$, $\mathrm{U}(1)$ breaks to $Z_2$
• Strings form, joining up the monopoles

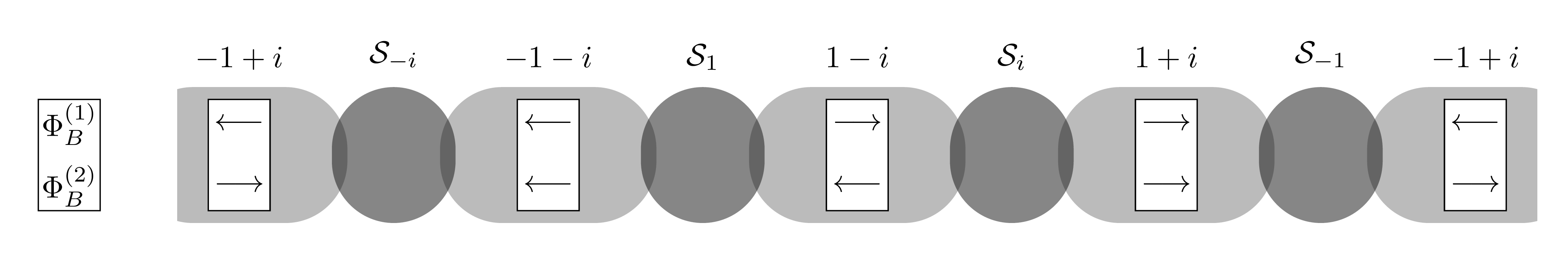

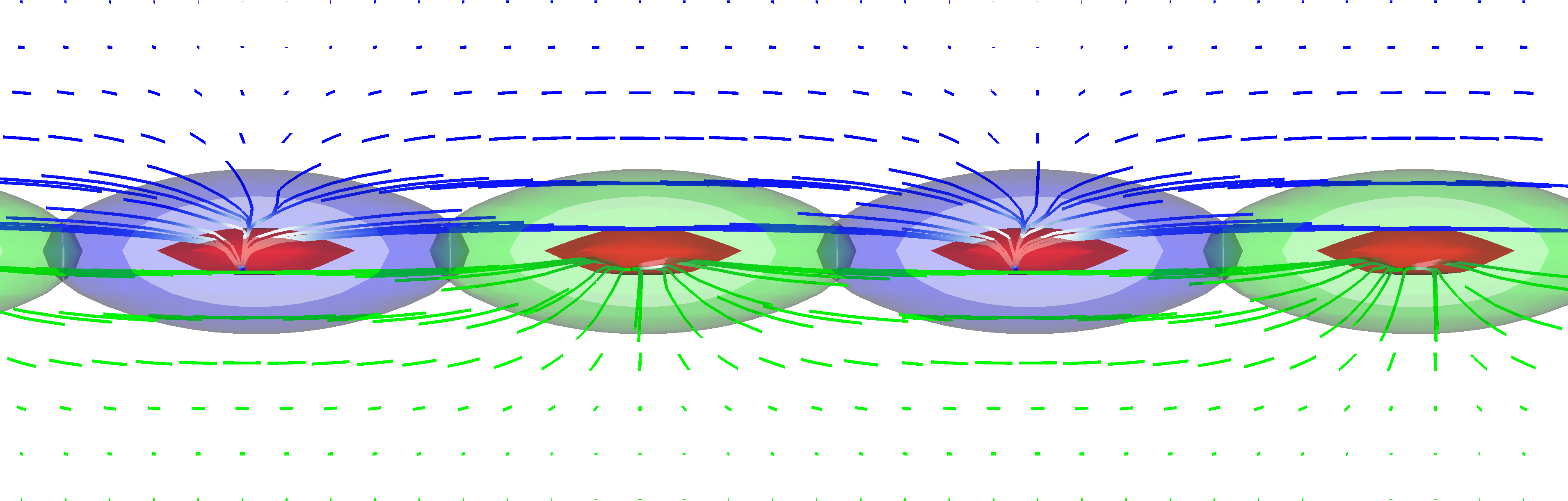

### Semipoles 1

• When $m_1^2 = m_2^2$ and $\kappa/2\lambda < 1$, get semipoles.
• Four types of pole; complex charge $\{1, i, -1, -i\}$.
• Linked by four types of string; complexified flux $\Phi_B^{(1)} + i \Phi_B^{(2)} \in \{1 + i, -1 + i, -1 - i, 1 - i\}$.

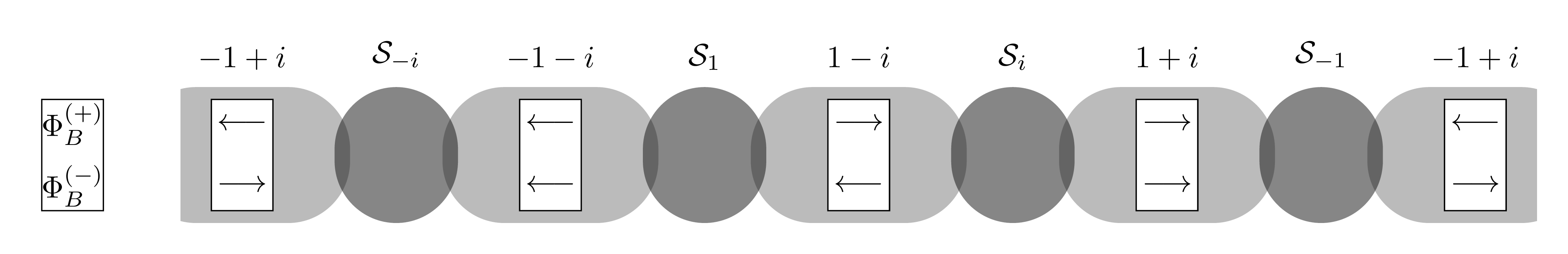

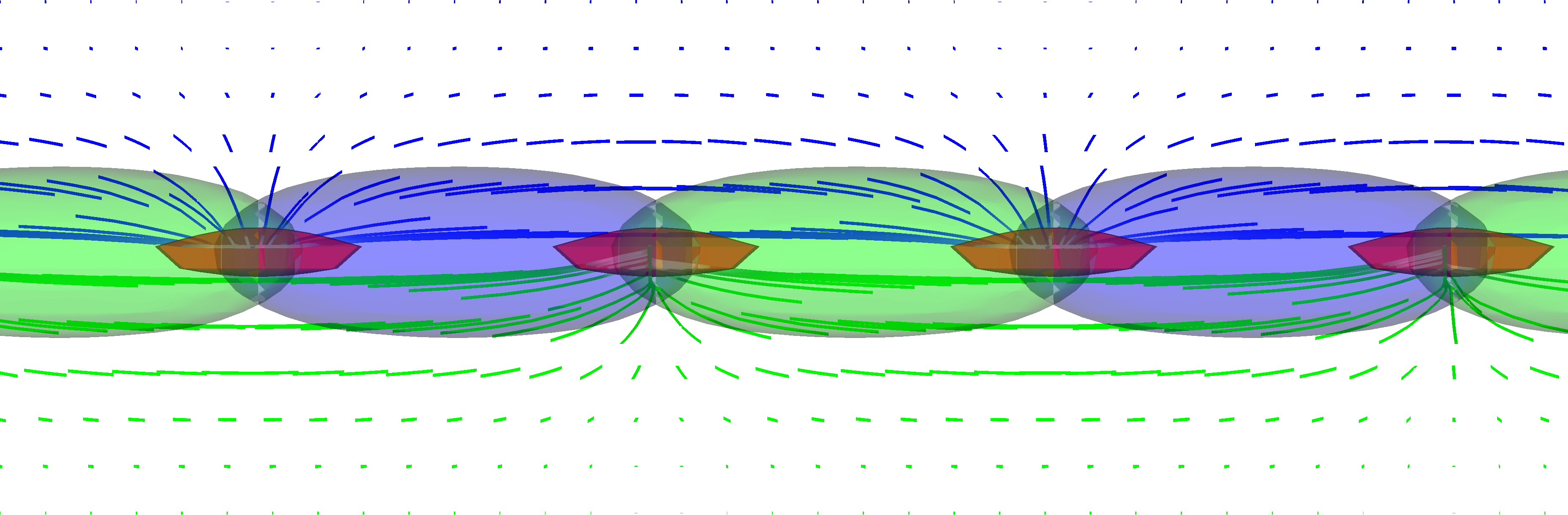

### Semipoles 2

• When $m_1^2 = m_2^2$ and $\kappa/2\lambda > 1$, slight difference...
• Vacua rotated by 45° so string fields are rotated, too, $$\Phi_\pm = (\Phi_1 \pm \Phi_2)/\sqrt{2}.$$

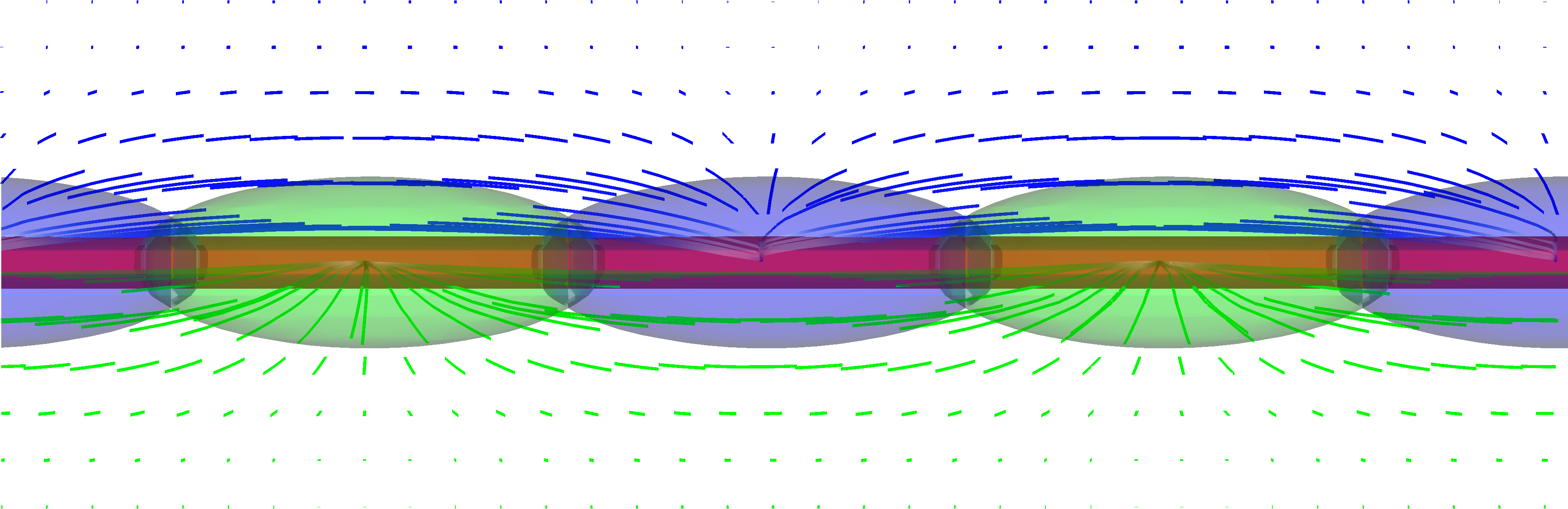

### Special case

• When $m_1^2 = m_2^2$ and $\kappa/2\lambda = 1$, there is a global $\mathrm{U}(1)$.

(We won't look at this any further today...)

### Do the simulations work?

• ✅ Yes, we can obtain the residual $\mathrm{U}(1)$ field.
• ✅ Yes, we can measure the vortex winding associated with the other Higgs field.
• ✅ Yes, they're both gauge invariant.
• Necklaces: heavier field (our $\Phi_1$) forms monopoles.
• For semipoles, we have to make two magnetic fields,
• either $\mathbf{B}^{(1)}$ and $\mathbf{B}^{(2)}$ from $\Phi_1$ and $\Phi_2$
• or $\mathbf{B}^{(\pm)}$ from $\Phi^{(\pm)} = \frac{1}{\sqrt{2}}(\Phi_1 \pm \Phi_2)$.

### String and pole position movie

Video credit: Asier Lopez-Eiguren

### Limitations of the simulations

(in addition to the usual caveats for field theory strings)

• Mass scales $m_1^2$ and $m_2^2$ will never be that different 😕
• Largest we have is $m_2^2/m_1^2 = 0.04$.
• Decrease $m_2$? Fatter strings reduce statistics.
• Decrease $m_2$? Defect formation dynamics happens on time $1/m_2$ - need longer simulations.
• Increase $m_1$? Small monopoles can get stuck on lattice.

## Movie interlude

(We also have 3D and 360 movies!)

### Necklaces

Video credit: Anna Kormu [link to Vimeo]

### Semipoles 1 ($\kappa/2\lambda < 1$)

Video credit: Anna Kormu [link to Vimeo]

### Semipoles 2 ($\kappa/2\lambda > 1$)

Video credit: Anna Kormu [link to Vimeo]

(note, isosurfaces of unrotated $\Phi_1$, $\Phi_2$)

### Dynamics: key quantities

• Lattice projectors give the positions of monopoles (total $N$) and plaquettes with winding (total $L$).
• Average defect separations in volume $V$ $$\xi_\mathrm{m} = \left(\frac{V}{N}\right)^{1/3}; \qquad \xi_\mathrm{s} = \left(\frac{V}{L}\right)^{1/2}.$$
• Comoving pole density $$n = \frac{\xi_\mathrm{s}^2}{\xi_\mathrm{m}^3}.$$

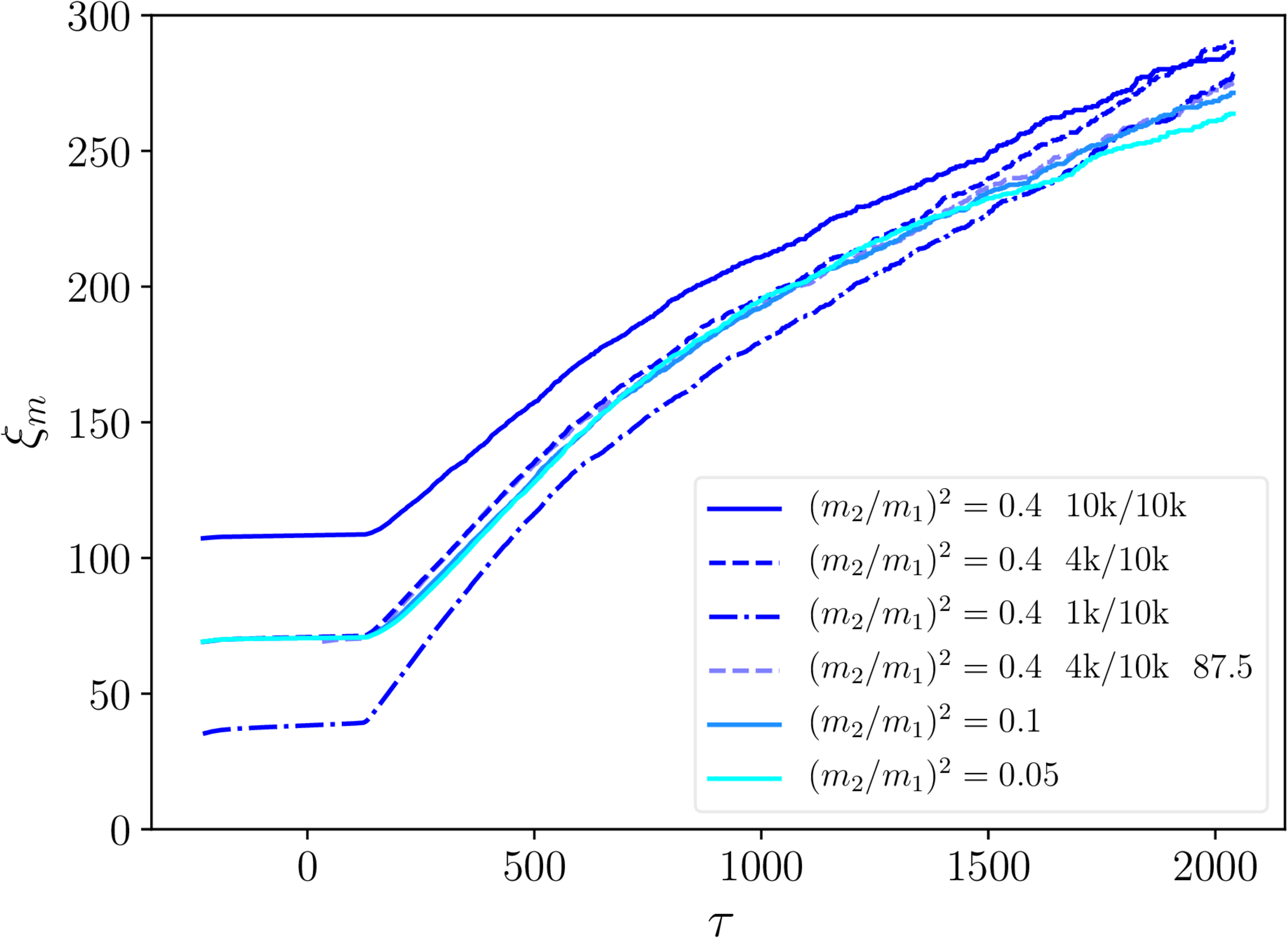

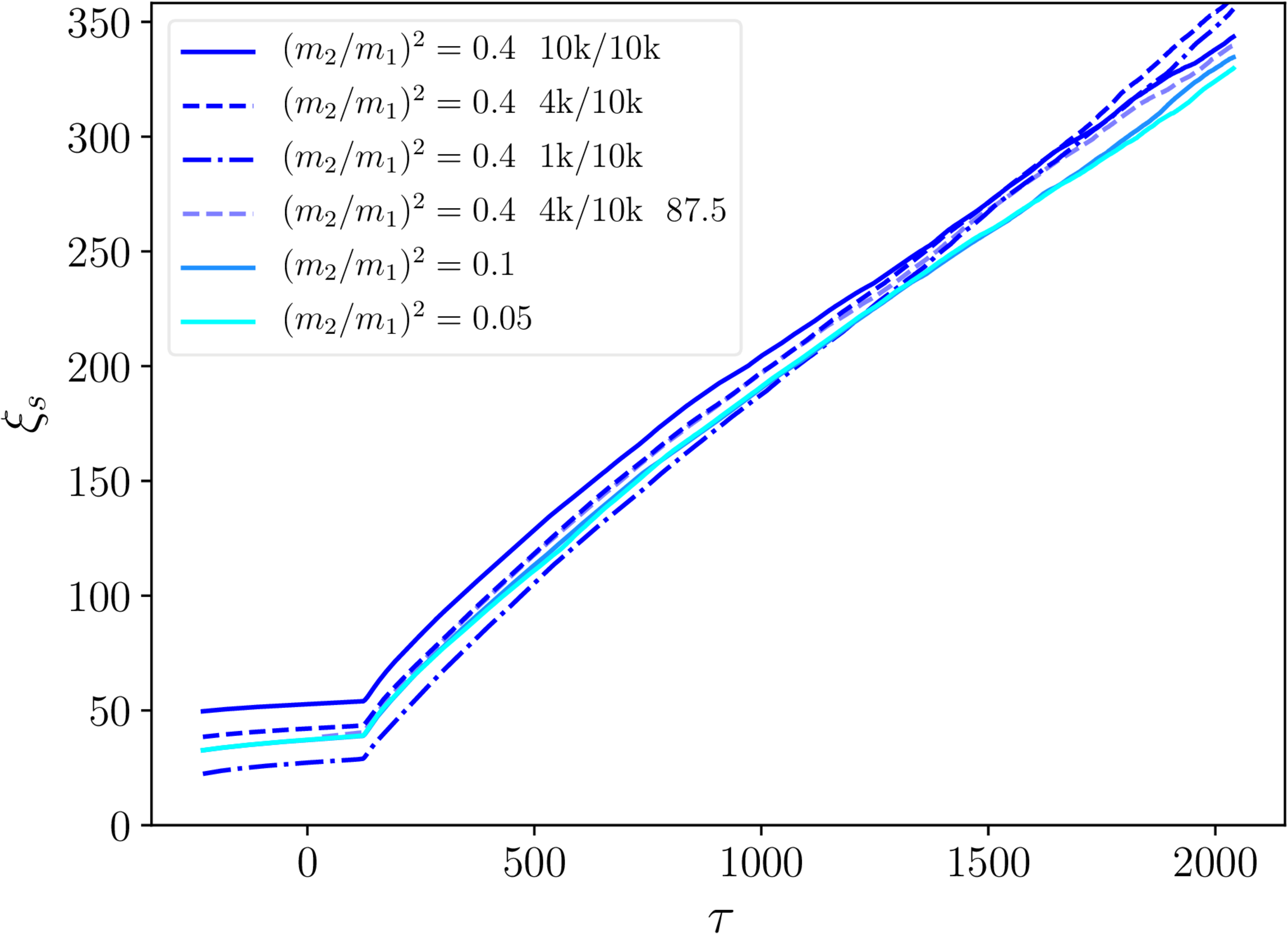

### $\xi_\mathrm{s}$ and $\xi_\mathrm{m}$ - necklaces

• String separation: linear scaling in conformal time $\tau$.
• Monopole separation: $\xi_m \mathrm \propto{\tau}^{2/3}$.
• No real dependence on initial $\xi_\mathrm{m}$.

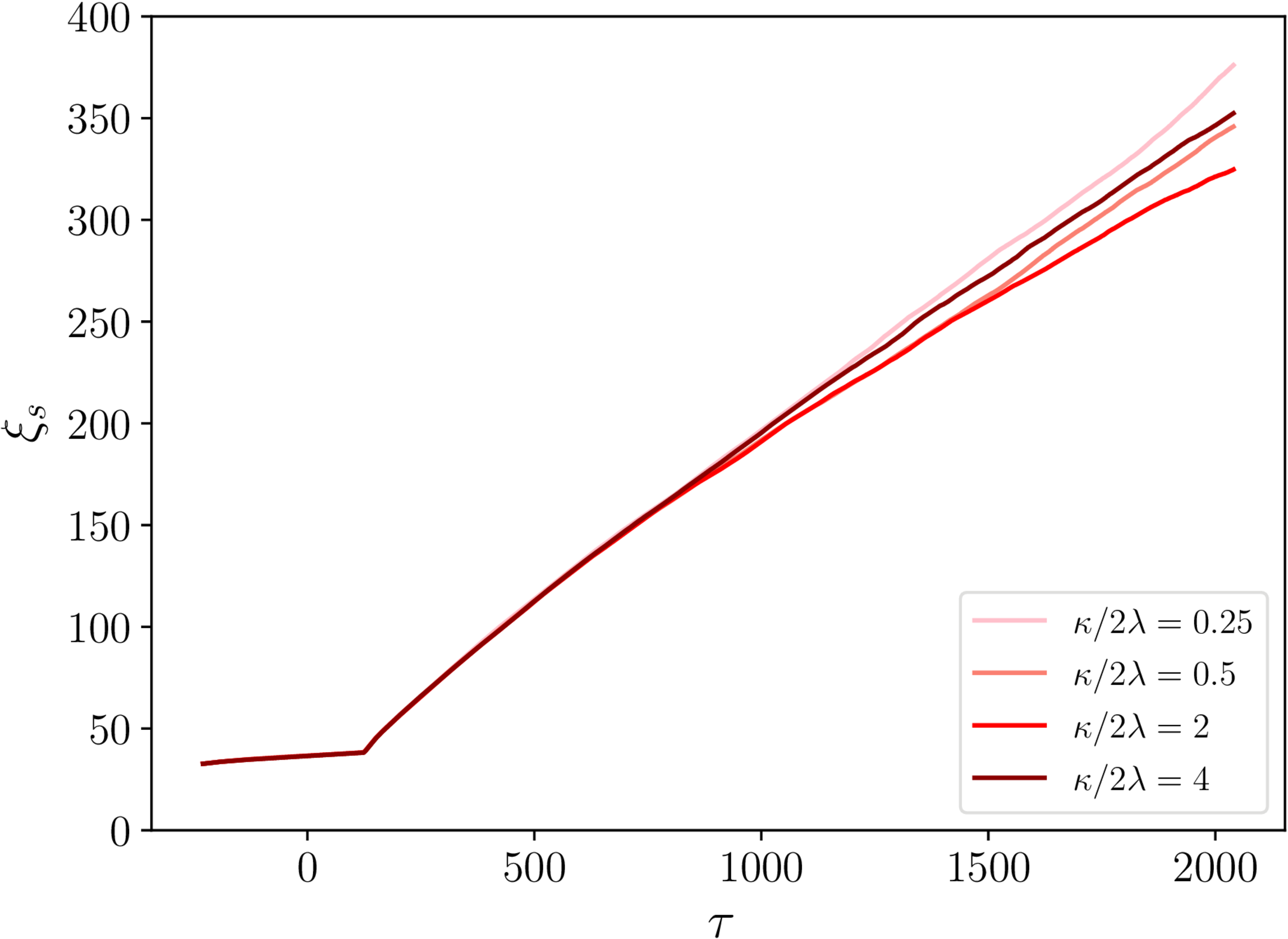

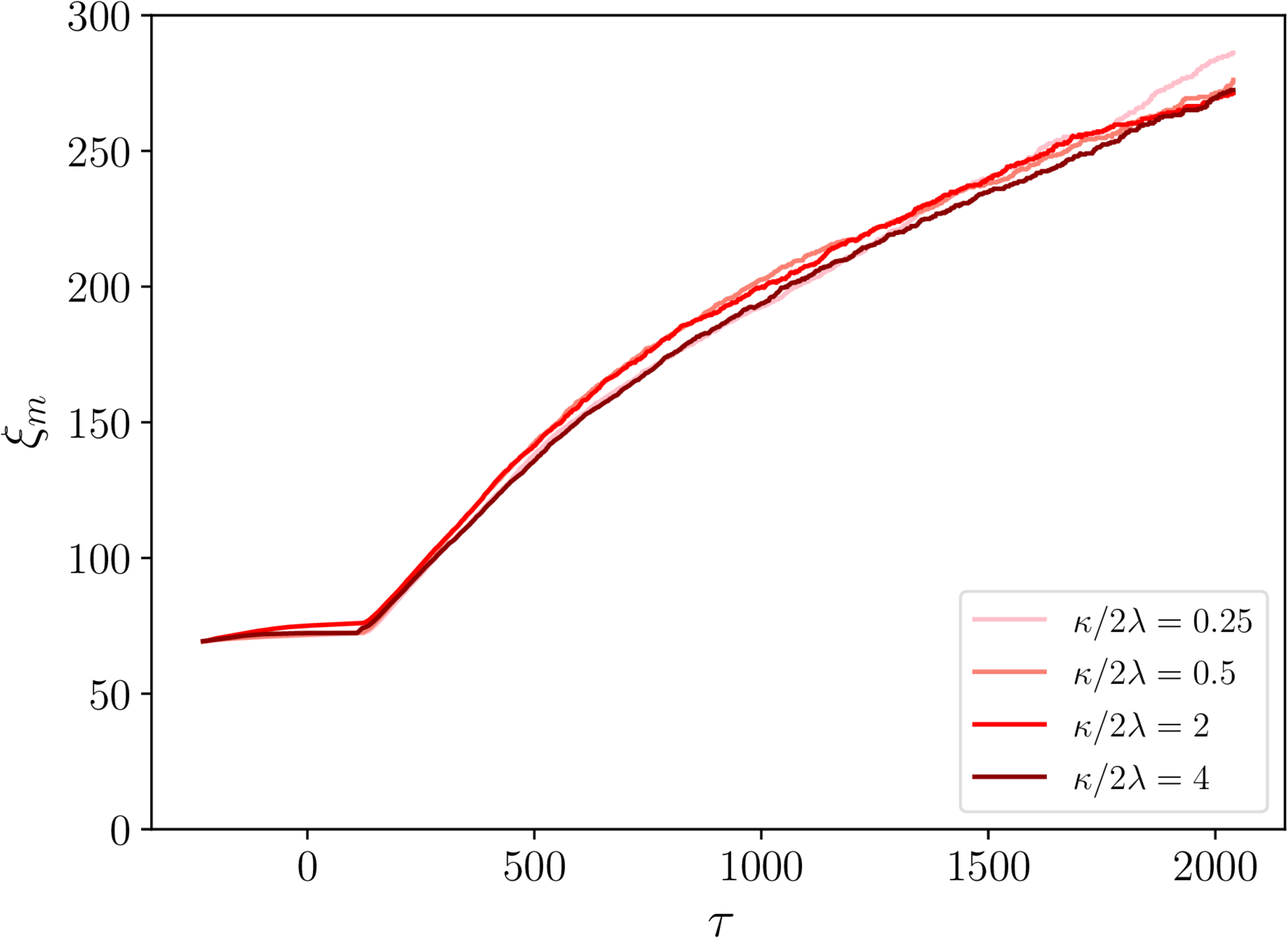

### $\xi_\mathrm{s}$ and $\xi_\mathrm{m}$ - semipoles

• Same general story as for necklaces.
• Some hints of different $\kappa/2\lambda$ behaviour...

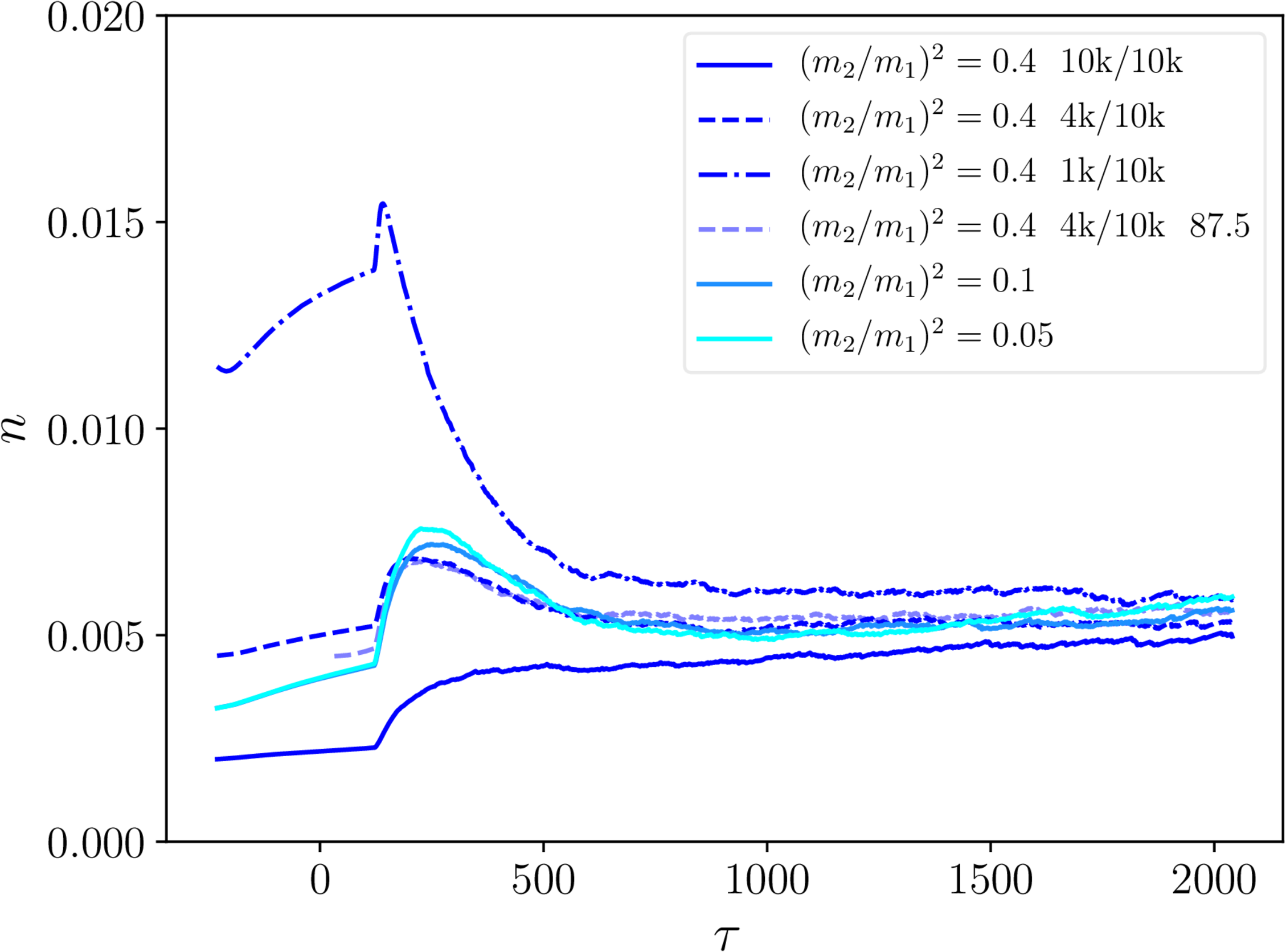

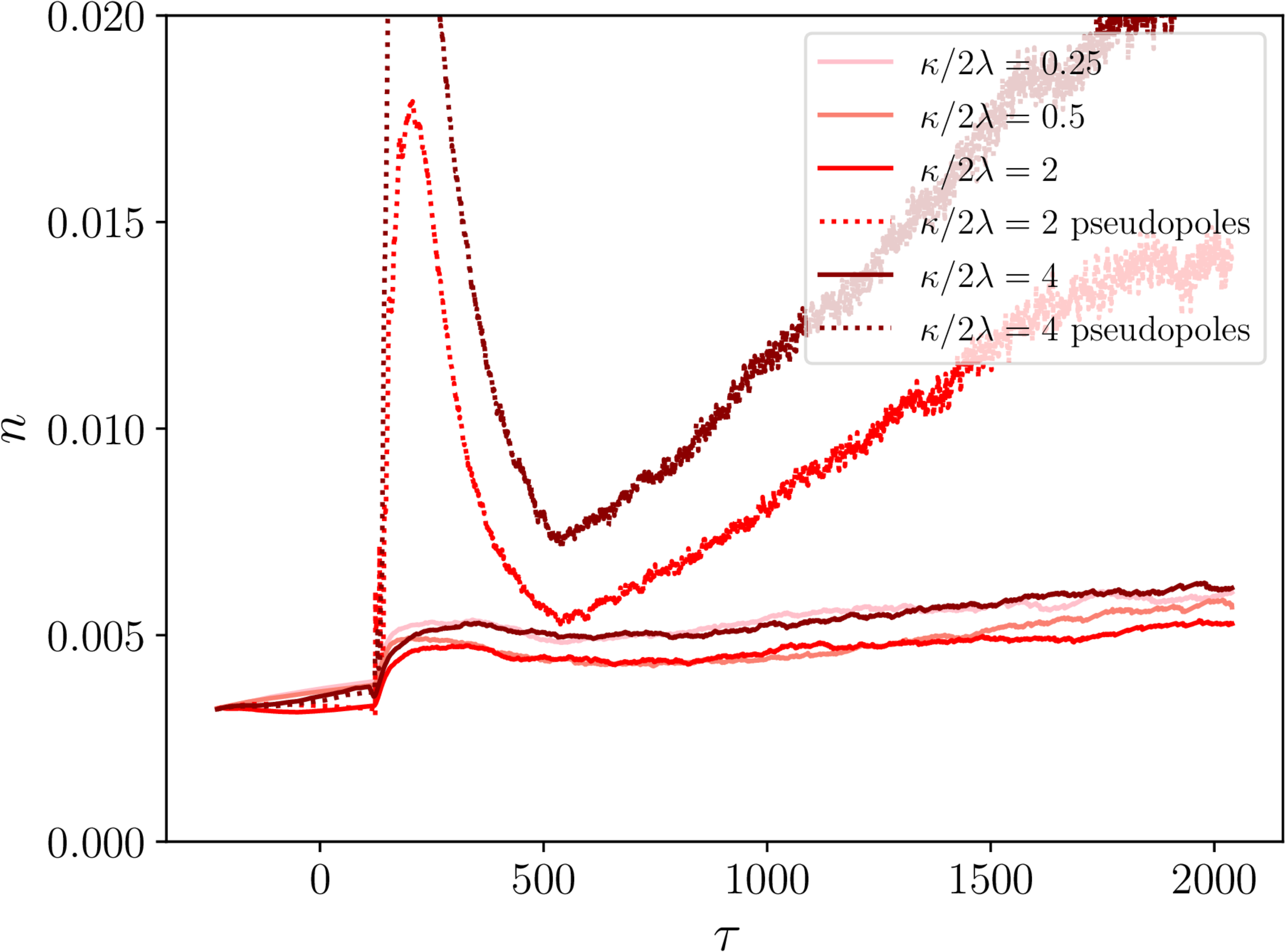

### Monopole linear density - necklaces and semipoles

• Note 'pseudopoles': wrong complexified $\mathbf{B}$ fields.
• Everything physical goes to constant $n$ (more or less).

### Conclusion

• Simulations of necklaces in radiation era: 10M CPUh.
• Both standard and semipole necklaces.
• String separation scales with conformal time: $\xi_\mathrm{s} \propto \tau$.
• But constant comoving pole separation $n$ along strings
⇒ Monopoles are "along for the ride"...
• Models in the literature don't quite work.

### View this talk again

saoghal.net/slides/jyvaskyla-necklaces

## Extra stuff

### Implementing the simulations

• Real-time lattice simulation, temporal gauge ($A^0 = 0$).
• Initial conditions and evolution must satisfy Gauss law.
• Fundamental quantities: links $U_i \in \mathrm{SU}(2)$ and fields $\Phi_n$.
• Our key measurements are the location of monopoles and plaquettes with winding number.

### Getting the monopoles

• Make projectors $\Pi_\pm = \frac{1}{2} (1 \pm \hat{\Phi}_1)$ where $$\hat{\Phi}_1 = \Phi_1\sqrt{2/\mathrm{Tr}\, \Phi_1^2}$$
• Get the $\mathrm{U}(1)$ gauge field corresponding to $\Phi_1$,
• $$u_\mu(x) = \Pi_+(x) U_\mu(x) \Pi_+(x+\hat{\mu}).$$
• Construct an effective "field strength tensor" hep-lat/0009037 $$\alpha_{\mu\nu} = \frac{2}{g} \; \mathrm{arg} \; \mathrm{Tr}\; u_\mu(x) u_\nu(x+\hat{\mu}) u_\mu^\dagger(x+\hat{\nu}) u_\nu^\dagger(x).$$
• From which effective magnetic field and charge is $$B_i = \frac{1}{2} \epsilon_{ijk} \alpha_{jk}; \qquad \rho_{\mathrm{M}}= \sum_{i=1}^3 [B_i(x+\hat{\imath}) - B_i(x)]$$

### Getting the winding

• Similar to Abelian Higgs hep-ph/9809334
• Difference in phase angle for $\Phi_2$ hep-lat/0009037 $$\begin{multline}\delta_i(x) = \mathrm{arg} \; \mathrm{Tr} \; \big[ \hat{\Phi_2}(x) \Pi_-(x) U_i(x) \Pi_-(x+\hat{\imath}) \\ \hat{\Phi_2}(x +\hat{\imath}) \Pi_+(x+\hat{\imath}) U_i^\dagger(x) \Pi_+(x) \big]. \end{multline}$$
• Winding number through a plaquette in the $ij$-plane at $x$ is then $$Y_{ij}(x) = \delta_i(x) + \delta_j(x+\hat{\imath}) - \delta_i(x+\hat{\jmath}) - \delta_j(x) - g \alpha_{ij}(x).$$
• We can trace this (and the monopoles) through the lattice.

### Running the simulations

• "Naive" random initial conditions (memory soon lost).
• Simulate physical equations of motion, but first:
• Some smoothing $$\Phi_n(\mathbf{x}) \to \frac{1}{12} \sum_i \left[ \Phi_n(\mathbf{x}-\hat{\imath}) + 2\Phi_n(\mathbf{x}) + \Phi_n(\mathbf{x} + \hat{\imath}) \right].$$
• Then some heavy damping in a Minkowski background.
• And 'core growth' (run equations with $s=-1$).
• $1920^3$ lattices, run for one light crossing time.
• Gauss Law OK, energy conservation < 1%.

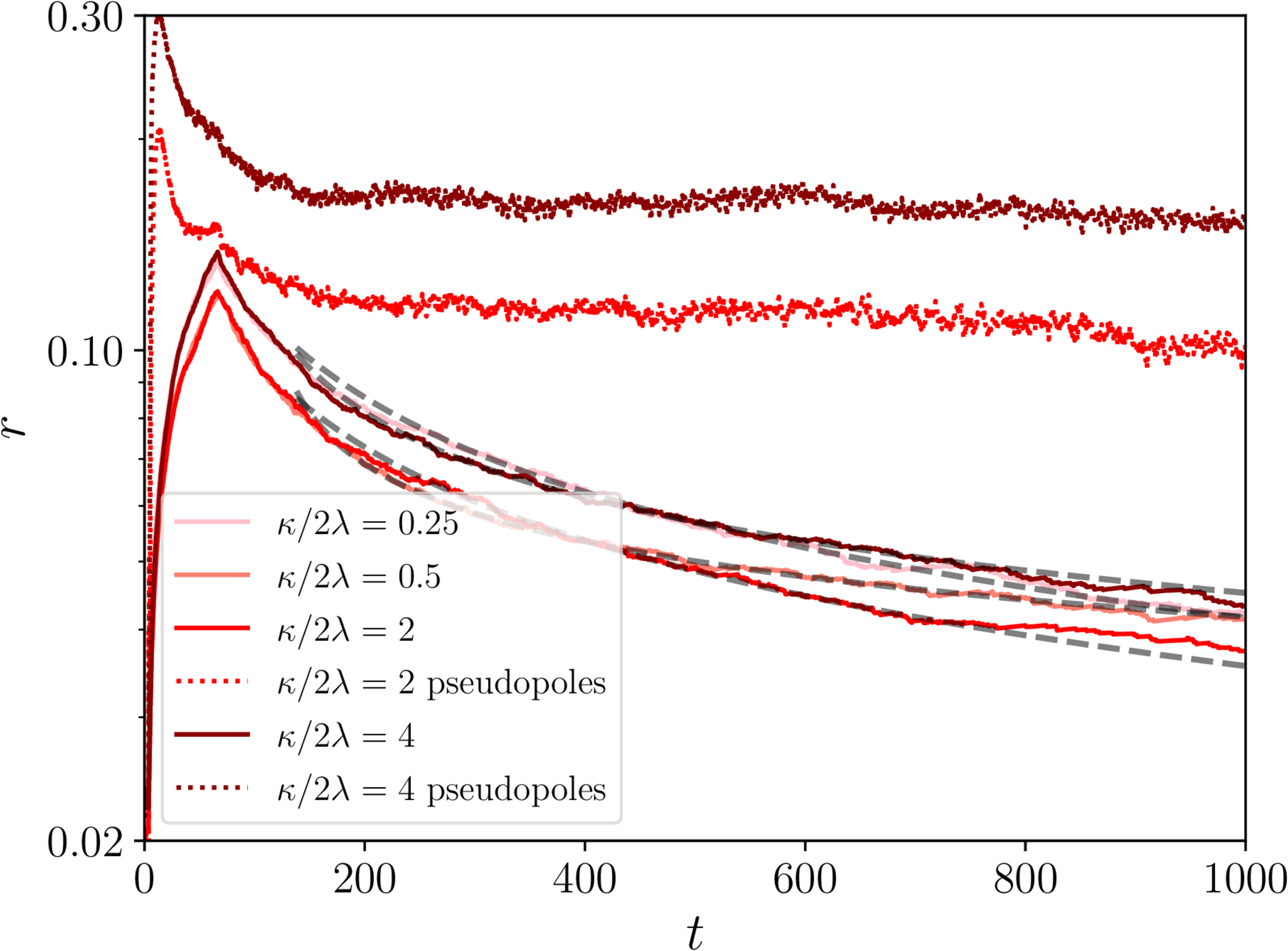

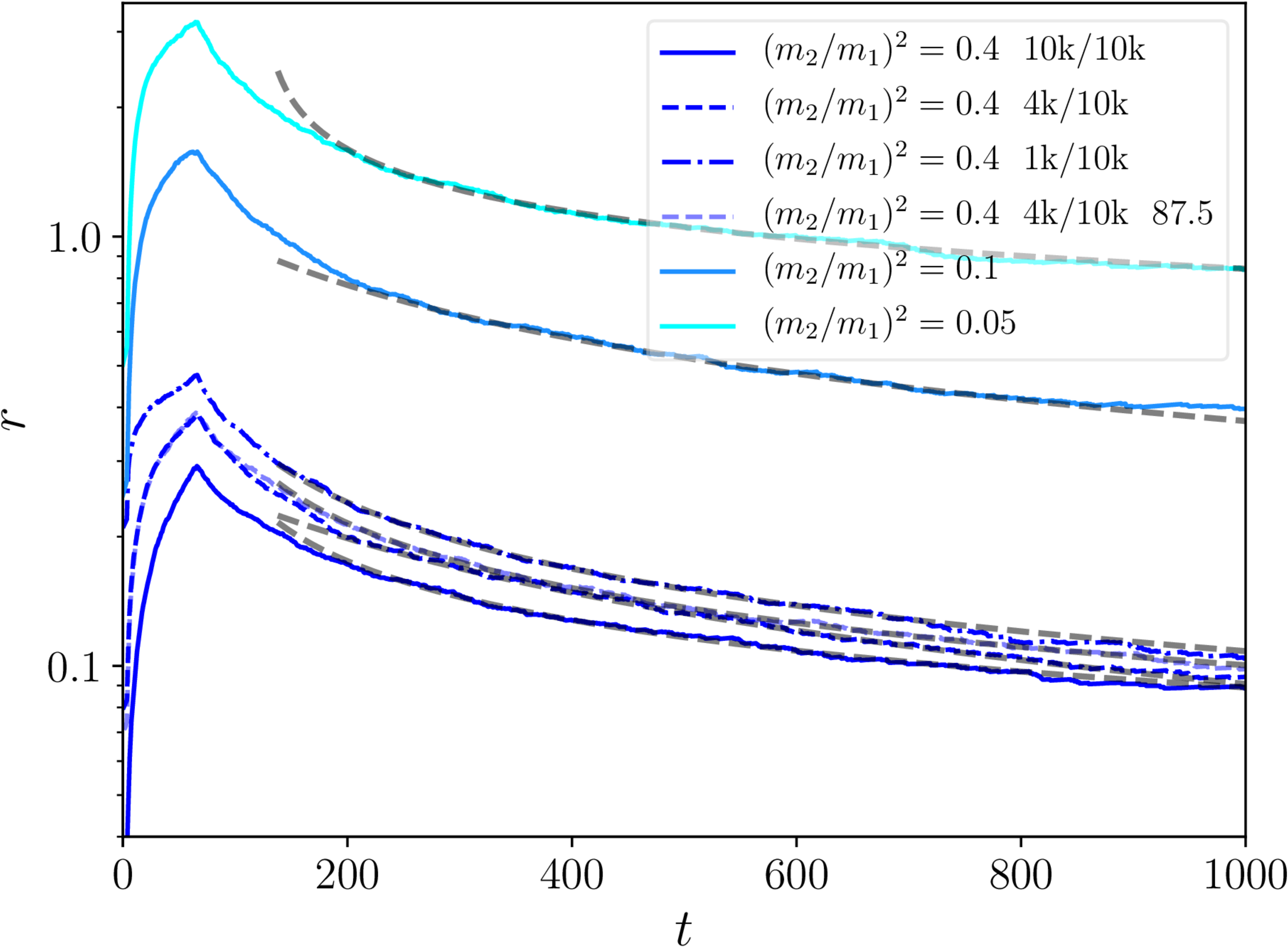

### Extra: $r$

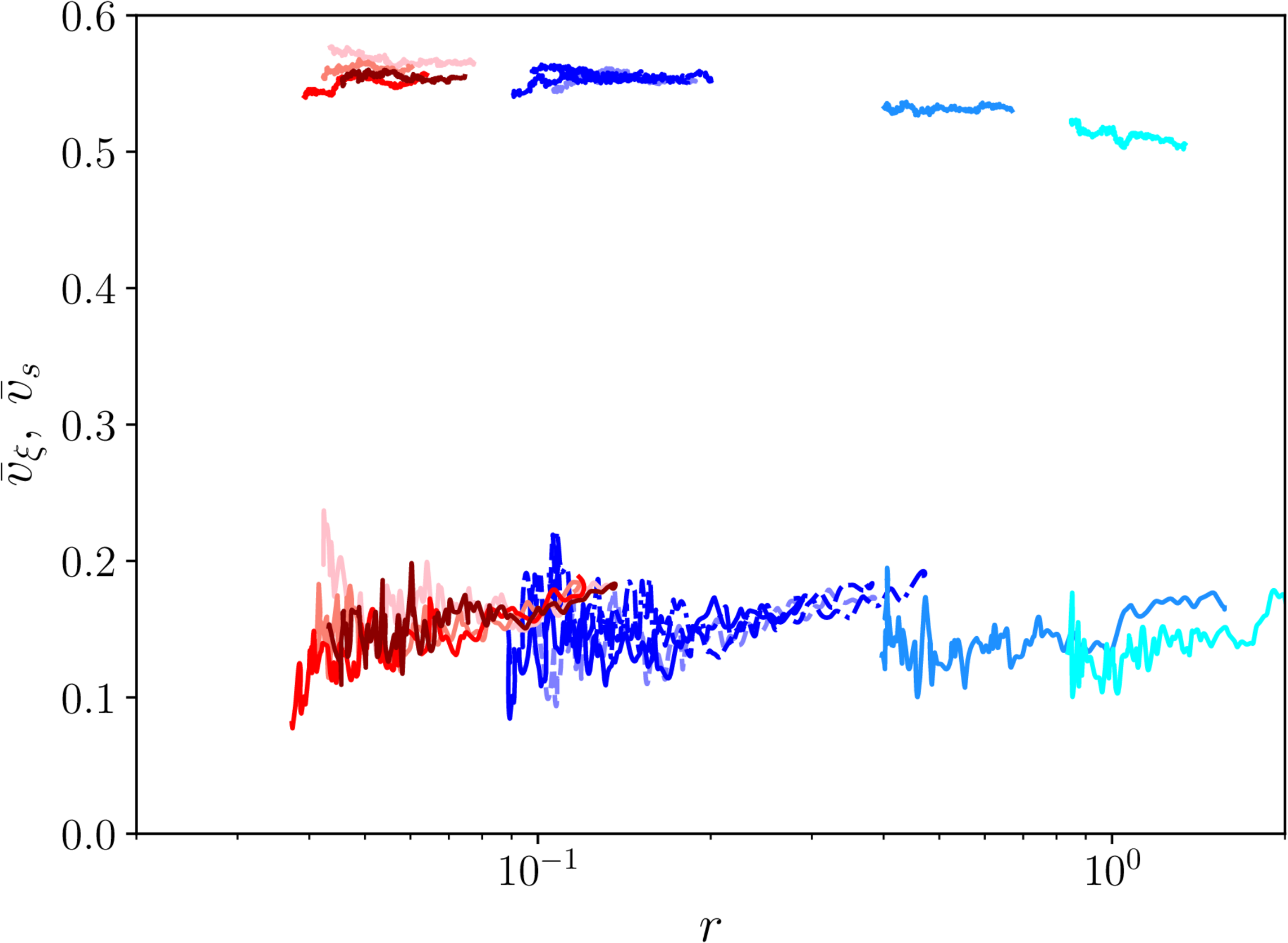

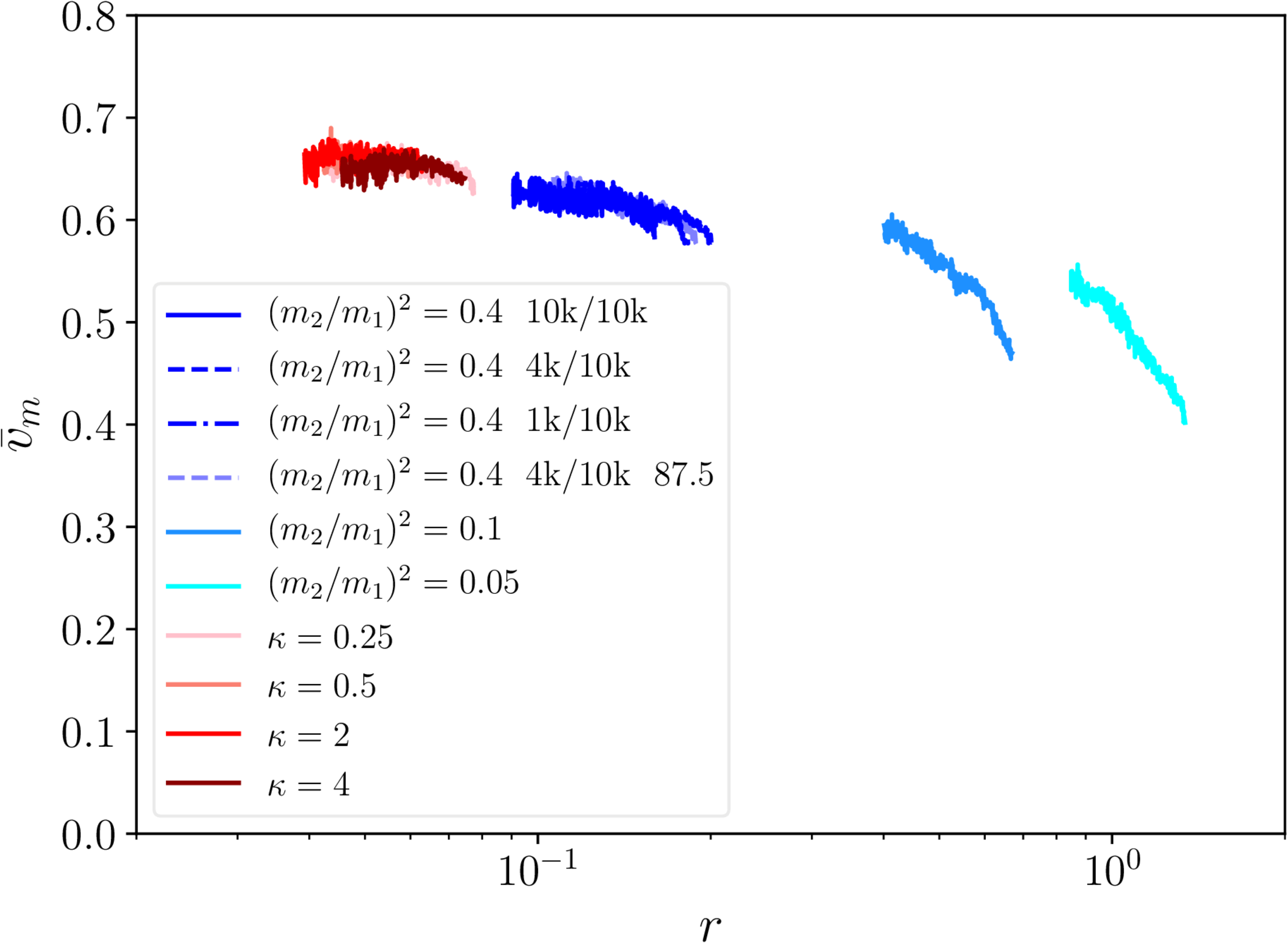

• Define the linear monopole density $n$ in units of $d_\mathrm{BV}$, $$r = d_\mathrm{BV} \frac{n}{a}, \quad \text{where} \quad d_\mathrm{BV} = \frac{M_\mathrm{m}}{\mu}$$
• and the network energy density is $$\rho_n \simeq \frac{\mu}{\xi_\mathrm{s}^2}(1+r).$$
• So $r$ gives the ratio of energy density in strings to monopoles.
• If $\xi_\mathrm{s} \propto \tau$ and $r$ constant, monopoles are a constant fraction of the total energy.
